Many portable device teams see unstable motor behavior even with a perfectly good motor. This often manifests as startup jitter, sudden speed changes, or unexpected noise, derailing development timelines.
Miniature BLDC motors are highly sensitive to power supply quality because their low rotor inertia and rapid electronic commutation instantly translate any voltage instability into mechanical vibration and erratic performance.

In my experience integrating motors into compact OEM systems, the power supply is one of the most frequently overlooked sources of motion problems. Engineers are often quick to blame the motor or driver for inconsistent behavior, but the root cause is frequently found upstream in the power delivery network. Understanding how and why these tiny motors react to electrical noise is the first step in designing a truly robust and reliable battery-powered device.
What Is Voltage Ripple and Where Does It Come From?
Your system shows random motor faults, and you can't trace them to software or mechanics. The problem might be invisible electrical noise on your DC power rails, sabotaging motor performance.

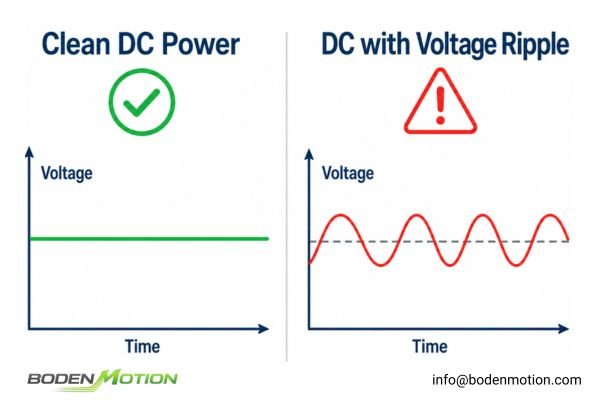

Voltage ripple is a residual, periodic AC voltage fluctuation superimposed on a DC power supply, originating from sources like switching regulators, low-quality adapters, or long power cables.

No DC power source is perfectly flat. There's always some level of fluctuation, and this "ripple" has distinct characteristics depending on its origin. When we're troubleshooting an integrated system, we look for these specific signatures using an oscilloscope connected directly at the motor's terminals.

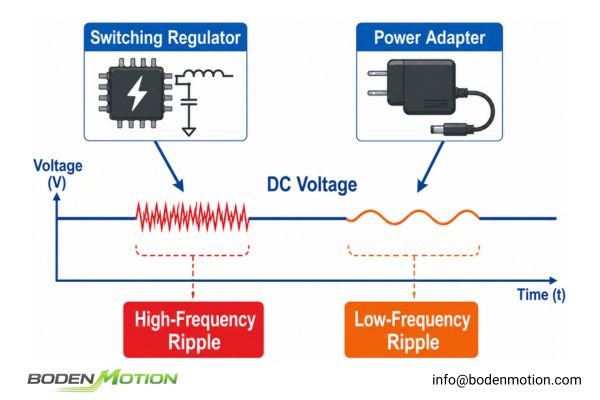

Common sources of ripple in OEM devices include:
- Switching Power Supplies (SMPS): These are efficient and compact but inherently generate high-frequency noise (typically 50 kHz to >1 MHz) from their switching operation.
- Low-Quality AC/DC Adapters: Cheaper adapters often have poor filtering, allowing significant low-frequency ripple (e.g., 100/120 Hz from the AC mains) to pass through to the DC output.
- Battery Discharge: As a battery discharges, its internal resistance increases. When the motor demands a sudden pulse of current, the battery voltage can sag temporarily, creating load-dependent ripple.1
- Long or Thin Cables: The impedance of long, thin power cables can cause a voltage drop that fluctuates with the motor's current draw, effectively creating ripple at the motor itself, even if the power supply is stable.
This ripple becomes especially problematic for miniature BLDC motors, which lack the physical inertia to ignore it.
Why Are Mini BLDC Motors More Sensitive to Voltage Ripple?

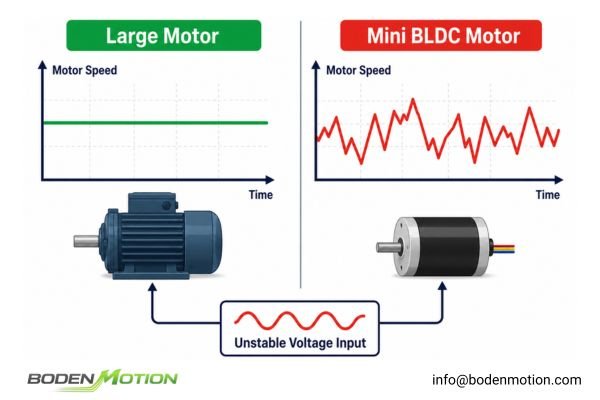

You might use the same power supply for a large industrial motor without issue, yet a miniature BLDC motor on the same rail suddenly jitters, produces audible whine, or behaves unpredictably. This is usually not a motor defect, but a consequence of how small motors respond to electrical instability.
Miniature BLDC motors are inherently more sensitive to voltage ripple because of their low rotor inertia, limited winding inductance, and fast dynamic response. Small fluctuations in supply voltage can therefore translate into noticeable current variation, torque pulsation, and mechanical vibration.

The fundamental relationship can be described by the motor voltage equation:
V = E_b + I × R
When terminal voltage V fluctuates because of ripple, motor current I also changes dynamically. Since motor torque is proportional to current (T = K_t × I), unstable current directly introduces torque fluctuation into the system.
For miniature motors, this effect becomes significantly more noticeable because the motor itself provides less natural electrical and mechanical damping.
| Characteristic | Mini BLDC Motor (<20 mm) | Large Industrial BLDC Motor | System Impact |
|---|---|---|---|
| Rotor Inertia | Extremely Low | High | Small rotors cannot effectively smooth high-frequency torque pulsations. |
| Winding Inductance | Low | High | Lower inductance provides less natural filtering of current ripple and switching noise. |
| Mechanical & Electrical Damping | Limited | Stronger | Larger motors naturally absorb transient torque and current fluctuation more effectively. |
| Dynamic Response Sensitivity | Very High | Moderate | Small motors react more rapidly to supply instability and commutation disturbance. |
In real OEM systems, this heightened sensitivity becomes most visible during startup and low-speed operation, where stable commutation timing and accurate rotor position detection are critical.
How Does Voltage Ripple Affect Startup Stability and Low-Speed Operation?
Your portable medical pump sometimes fails to start, or your handheld scanner jitters at low speeds. The cause is often voltage ripple corrupting the delicate commutation sequence.
At low speeds, voltage ripple disrupts the driver's ability to accurately sense back-EMF or Hall sensor signals, leading to commutation timing errors, torque pulsation, and potential startup failure.

A BLDC motor's startup and low-speed operation is a carefully choreographed dance. The driver must correctly identify the rotor's position to energize the right windings. This process is highly vulnerable to noise.

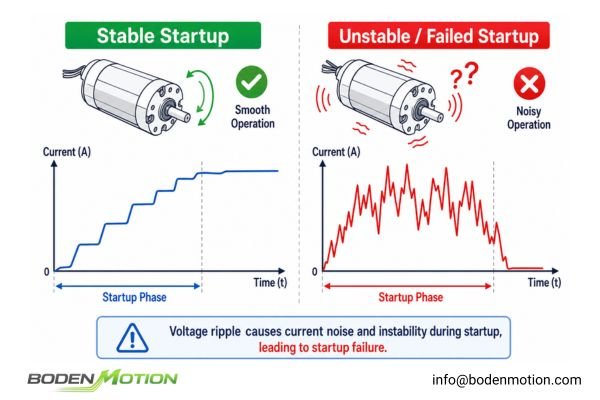

- Startup Instability: During startup, back-EMF is zero or very low2. Sensorless drivers rely on detecting subtle current changes to estimate rotor position. Voltage ripple can create "false" signals, causing the driver to lose synchronization. The motor may "rock" back and forth or fail to start altogether.
- Low-Speed Torque Fluctuation: At low RPMs, commutation frequency is low. Any ripple on the power line introduces torque pulses that are not smoothed out by the rotor's inertia. The result is cogging or jerky motion that can be mistaken for a bad gear.
Once ripple begins affecting torque stability, the resulting micro-vibrations can excite mechanical resonances throughout the system, creating a new set of problems.
Why Does Voltage Ripple Increase Noise and Vibration in Mini BLDC Systems?
You've balanced the rotor and used high-quality bearings, but the device still produces a high-pitched whine at certain speeds. Before you suspect a mechanical issue, check your power supply.
Voltage ripple modulates the motor's current, introducing vibration frequencies that can interact with the system's commutation frequency and mechanical structure, creating amplified, tonal noise.

This is one of the most misdiagnosed issues in compact system integration. An engineer hears a whine and immediately suspects a bearing. The true source, however, is often an interaction between the electrical supply and the motor's operation.
How Does Ripple Interact With Commutation Frequency?

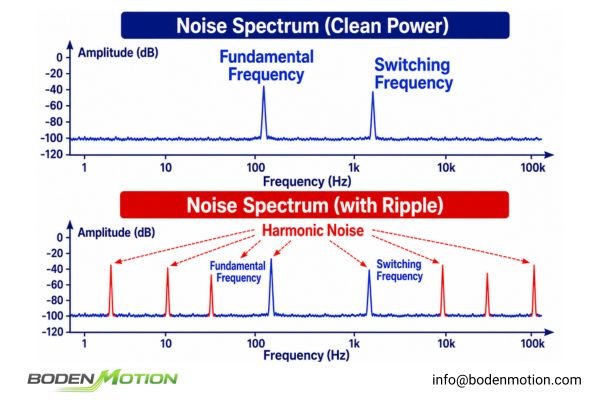

The most deceptive noise occurs when the power supply ripple frequency interacts with the motor's commutation frequency. This can create "beat" frequencies and harmonics that are not present when the motor is run on a clean lab supply.
- A power supply has a 120 Hz ripple.
- The motor is running at a speed resulting in a 1000 Hz commutation frequency.
- These two frequencies mix, creating new vibration components at their sum and difference (1120 Hz and 880 Hz).
- If the device's housing has a natural resonant frequency near 880 Hz, it will amplify this vibration into a loud, piercing tone.
These electrical instabilities are often amplified further by the surrounding power architecture, which can either suppress or worsen these problems.3
How Do Battery Type and Power Supply Design Influence Ripple Behavior?
Your battery-powered device works perfectly with a fresh battery but becomes unstable as the battery drains. This points directly to the power architecture's influence on the motor.

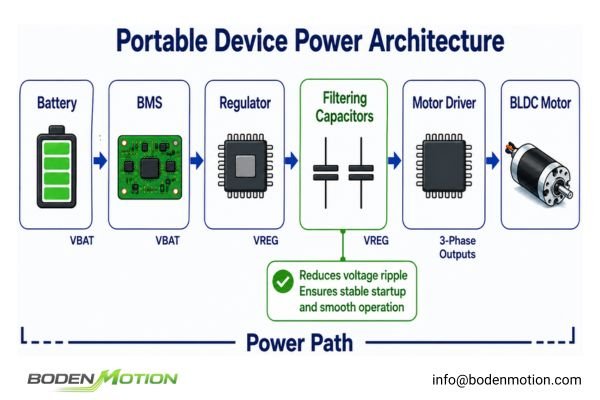

The power delivery network's impedance—from the battery's internal resistance to the PCB trace width—directly impacts how the motor experiences voltage sag and ripple under load.

A stable motion system depends on a stable power system. In compact devices, specific design choices can have a direct, negative impact on motor stability.
Why Power Architecture Matters for Motors:
- Battery Internal Resistance (ESR): As a battery ages or discharges, its ESR increases.4 The motor's pulsed current draw across this higher resistance creates a larger voltage drop (
V = I*R), increasing ripple. - Insufficient Bulk Capacitance: Without a sufficient bulk capacitor (e.g., 47–100µF) near the driver, the motor's sudden current demands must be drawn over long traces from the battery, maximizing voltage sag.
- High-Impedance Power Traces: Using long, thin PCB traces or cables to power the motor creates resistance and inductance, which convert the motor's dynamic current draw into voltage ripple right at the driver terminals.5
- Shared Power Rails: When a motor driver shares a poorly filtered power rail with a digital component, the processor's transient loads can inject noise onto the rail, disrupting the driver's sensitive control logic.
Understanding these system-level electrical interactions is the first half of the battle. The second is implementing a systematic workflow to mitigate them.
How Can OEM Engineers Reduce Voltage Ripple Problems in Mini BLDC Applications?
Chasing down ripple-related problems with trial-and-error is inefficient. A systematic approach to power delivery design and verification is the only way to guarantee stable motor performance.
Engineers can mitigate ripple by using proper filtering capacitors, optimizing PCB layout for low impedance, selecting stable regulators, and measuring ripple at the point that matters: the motor driver.

Solving ripple problems involves a combination of good design hygiene and targeted fixes.

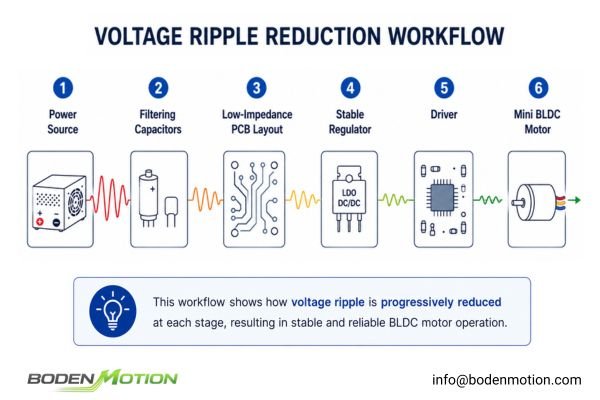

Engineering Checklist for Ripple Mitigation
- Place Filtering Capacitors Correctly: Use a large bulk electrolytic or polymer capacitor (e.g., 47-100µF) at the driver's power input to supply transient current, and small ceramic bypass capacitors (e.g., 0.1-1µF) very close to the driver's pins to filter high-frequency noise.6
- Optimize PCB Layout for Low Impedance: Use wide, short power traces. Employ a star ground connection from the driver back to the bulk capacitor to minimize ground noise.7
- Measure at the Motor: Do not trust the voltage at the power supply output. Always measure ripple with an oscilloscope directly at the motor driver terminals while the motor is running under load.
- Select a Quality Regulator: Choose a DC-DC converter with low output ripple specifications and a switching frequency that does not create harmonic beat issues in your operating speed range.
Real Integration Challenge: The datasheet rarely tells the full story. The specified motor performance is based on an ideal power source. Achieving that same performance in a compact, noisy electronic environment is the core of the integration engineer's job.
Conclusion
Voltage ripple directly impacts a mini BLDC motor's startup, stability, noise, and vibration. This sensitivity is not a flaw but an inherent characteristic of their low-inertia, fast-response design. Stable operation requires treating the power supply, filtering, and PCB layout as integral parts of the motion control system.
If you are developing portable medical devices, compact automation systems, or battery-powered instruments, the BODENMOTION engineering team can help. We provide system-level analysis to diagnose and mitigate voltage ripple through power delivery optimization, driver tuning, and fully integrated motor solutions.
📧 info@bodenmotion.com
FAQ: Voltage Ripple in Miniature BLDC Systems
Why do mini BLDC motors react more strongly to unstable voltage?
Their extremely low rotor inertia means they cannot mechanically "smooth out" the rapid torque pulsations caused by current fluctuations. They physically respond to the ripple, unlike larger motors with high inertia that can ignore it.
Can voltage ripple damage a BLDC motor?
Direct, permanent damage is rare from typical ripple levels. However, the resulting torque ripple and vibration can accelerate wear on bearings and gear systems over time. More commonly, it causes performance failures like startup stalls or loss of synchronization, which are critical in many OEM applications.
Why does ripple create audible noise?
Ripple creates torque pulsations (vibration). When the frequency of this vibration—or a harmonic of it—matches a natural resonant frequency of the motor's housing or mounting structure, that structure acts like a speaker, amplifying the vibration into loud, audible noise.
How can engineers measure ripple correctly?
Use an oscilloscope with probes placed directly across the motor driver's power input pins. It is critical to measure while the motor is running under a realistic load, as this is when the current draw and resulting voltage drop are highest.
Does battery type affect motor stability?
Yes. Batteries with higher internal resistance (ESR), such as some alkaline or older lithium-ion cells, will exhibit more voltage sag under the motor's pulsed current draw. This sag is a form of load-dependent ripple that can destabilize the motor.
Can PCB layout influence motor ripple?
Absolutely. Long, thin power traces add impedance between the power source and the motor driver. This impedance turns the motor's dynamic current draw into voltage ripple. A low-impedance layout with proper capacitor placement is crucial for stable motor operation.
