What Causes Noise in Brushless DC Motors?

By BODENMOTION Engineering Team

Many OEM engineers run into unexpected noise during device integration, a problem that can delay projects and undermine user confidence. This noise rarely indicates a defective motor; instead, it's a symptom of a system-level electromechanical issue.

The primary causes of noise in BLDC motors are electrical commutation ripple and mechanical imbalances. Our engineering approach is to analyze the complete system to isolate the root cause and implement targeted mitigation, ensuring a quiet and reliable end product.

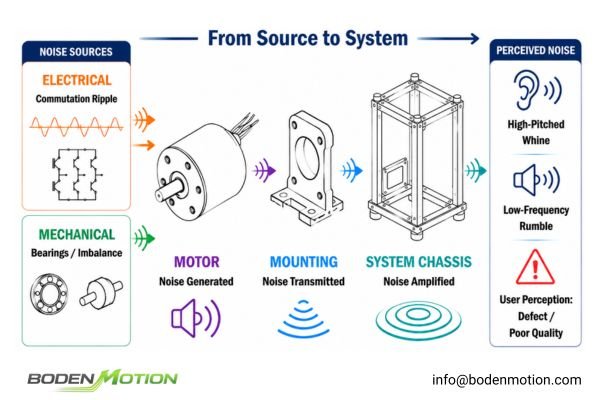

Diagram illustrating the propagation of noise from source (electrical ripple, bearings) through the motor structure and mounting to the system chassis

From my experience, especially in applications like medical instruments, robotics, and laboratory automation, noise is a critical performance parameter. A motor that is perfectly functional can be perceived as "broken" if it produces a high-pitched whine or a low-frequency rumble. Diagnosing and mitigating this noise requires looking beyond the motor's datasheet and analyzing its interaction with the entire system—a classic integration challenge we solve by looking at the complete electromechanical picture.

How Does Commutation Ripple Contribute to Motor Noise?

You run the motor and hear a distinct hum that changes pitch with speed. This is almost always caused by torque ripple, an inherent electrical characteristic that can be precisely managed with the right control strategy.

Commutation ripple is a high-frequency torque variation generated as the driver switches current between phases. This causes micro-vibrations in the stator that can become audible noise, especially if amplified by the system's structure.

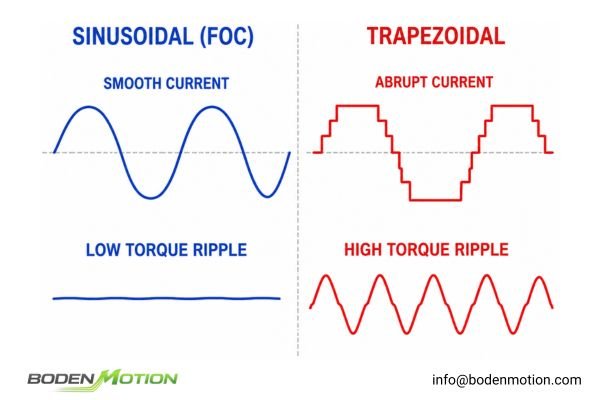

Chart contrasting a smooth sinusoidal current waveform with a trapezoidal one, showing the corresponding reduction in torque ripple and vibration

Every time a BLDC controller commutates, the magnetic field interaction isn't perfectly smooth, creating a small pulsation in torque output. This ripple is a vibration source whose frequency is tied to the commutation speed. This electrical vibration is the source, but its audibility depends entirely on how the mechanical system responds.

This is why OEM integration teams focus first on driver tuning. Through advanced control, this electrical noise source can be suppressed at its origin.

While electrical ripple is a primary vibration source, it's not the only one. Another critical factor is the motor's own internal mechanical construction.

What is the Role of Bearings and Assembly Tolerances?

In addition to electrical ripple, a low-level grinding or clicking sound can persist even with a perfect driver. This often originates from the motor's ball bearings and mechanical assembly.

Noise from ball bearings, caused by factors like preload, contamination, or minute imperfections in the races, can become a dominant acoustic factor in ultra-quiet devices, entirely separate from electrical ripple.

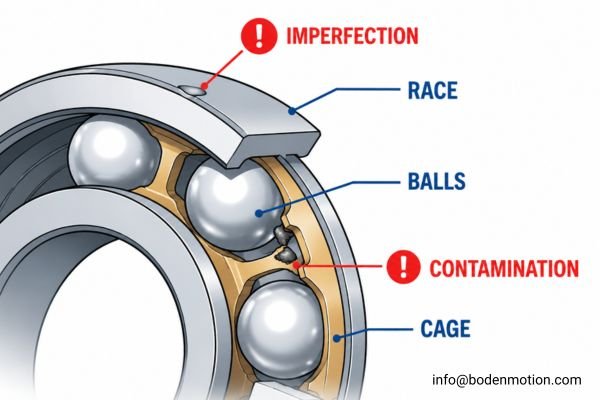

Cross-section of a motor bearing showing the balls, races, and potential sources of noise like contamination or brinelling

In high-precision or medical applications, bearing noise can be a deal-breaker. The trade-off between bearing preload is critical: too much preload increases friction, heat, and a continuous "hissing" noise2, while too little preload allows for ball-to-race "chatter," creating intermittent clicks, especially during direction changes. This is often a matter of microns. Furthermore, assembly tolerances play a huge role. If the shaft or housing bores are not perfectly concentric, the bearings will be unevenly loaded, leading to premature wear and a characteristic once-per-revolution noise signature.

System-Level Observation: In a diagnostic device, we traced a persistent, low-level clicking noise not to the driver or gearing, but to a bearing with insufficient axial preload. Applying a small, 0.5 N spring force to the shaft end completely eliminated the noise. This sounds minor, but in a device operating near a patient's ear, it made all the difference.

These internal mechanical noises, combined with electrical ripple, provide the full spectrum of vibrations that can then be amplified by system resonance.

How Does Mechanical Resonance Amplify Noise in BLDC Motors?

Sometimes the individual vibration sources are quiet, but the system still produces a loud, piercing whine at a specific speed. This is a classic sign of mechanical resonance, where the structure itself acts as a powerful amplifier.

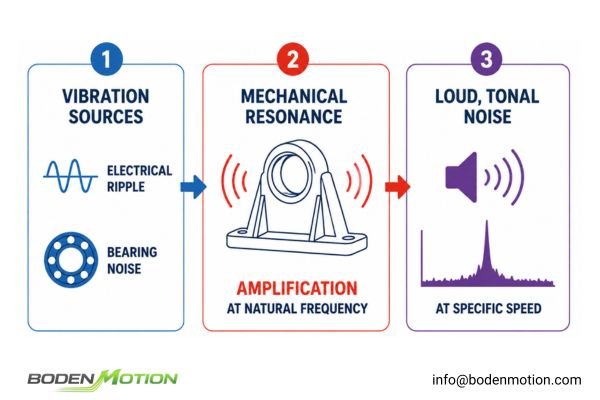

Mechanical resonance occurs when a motor's vibration frequency—whether from electrical ripple or bearing noise—matches a natural harmonic frequency of its structure or mounting, causing a dramatic amplification of vibration and loud, tonal noise.

FEA simulation plot of a motor mounting bracket showing a resonance mode at 450 Hz, with high-vibration areas in red

Every physical object has frequencies at which it prefers to vibrate. When a vibration source matches a structure's natural frequency, the energy transfer is extremely efficient. Vibration analysis using FFT helps our teams pinpoint these resonant frequencies and engineer targeted solutions.

I've seen many projects where this becomes a major integration hurdle:

  • Thin Housings: In compact devices, thin plastic or metal enclosures can act like a speaker cone, turning a tiny vibration into a loud tone.
  • Unsupported Shafts: A long shaft can have a low natural frequency. I once saw a 5mm shaft start to whip at around 9,000 RPM, creating a severe vibration that was easily fixed by adding a second bearing support.

Now that we have sources (ripple, bearings) and an amplifier (resonance), the final volume depends on the transmission path—the mounting.

How Do Mounting Methods Affect BLDC Motor Noise?

The motor is silent on a foam pad but screams when bolted into the product. The issue isn't the motor; it's how the mounting method transmits its vibrational energy.

The mounting method is the transmission path for vibration. A rigid mount directly couples motor vibrations to the chassis, while a compliant mount can isolate and damp them, preventing the system from resonating.

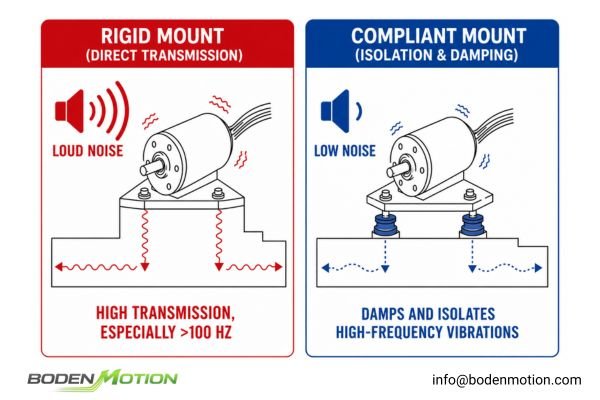

Diagram showing a rigid mount transmitting vibration vs. a compliant mount with elastomeric dampers isolating the motor from the chassis

Engineers often default to a rigid aluminum mount for positional accuracy, but this is usually the worst choice for acoustics as it provides a perfect path for high-frequency vibrations to travel into the larger structure. The engineering solution is to treat the mounting as a configurable mechanical filter.

Mounting Type Vibration Transmission Engineering Solution
Rigid Mount High transmission, especially above 100 Hz. If stiffness is mandatory, requires aggressive driver tuning (FOC) or a motor with exceptionally low residual imbalance (below 0.5 G).
Compliant Mount Damps and isolates high-frequency vibrations. Use of elastomeric dampers (e.g., 50A-70A durometer) or grommets to absorb vibrational energy and break the transmission path.

Adding compliant mounts is a proven strategy to decouple motor vibrations from the chassis. However, even with perfect isolation, the load itself can be a primary noise generator.

How Do Load Conditions and Coupling Affect Noise Levels?

The motor and mount are optimized, but noise appears when you connect the gearbox. This is because the load is an active, and often unpredictable, part of the acoustic system.

The connected load introduces its own vibration sources (e.g., gear backlash, fluid pulsation) and alters the system's overall mass and stiffness, changing its resonant frequencies and potentially amplifying noise.

Diagram showing how vibrations from a gearbox (backlash, meshing frequency) are transmitted back into the motor and system chassis

In many OEM projects, qualifying a motor in isolation is a common mistake. The load is not passive; it actively contributes to the system's noise profile. Common examples include:

  • Gear Trains: Gear tooth meshing creates its own high-frequency vibration. Backlash during direction changes can cause a distinct "hammering" or knocking sound.
  • Pumps: Diaphragm pumps generate strong pressure pulses that create low-frequency torque fluctuations, which can interact with the motor's own ripple.
  • Belts and Pulleys: An over-tensioned belt can dramatically increase bearing load and noise, while pulley eccentricity introduces a once-per-revolution vibration.

Connecting a load also adds mass, lowering the system's natural resonant frequencies3. With all these interacting variables, a systematic diagnostic process is essential4 to avoid wasting weeks on trial-and-error fixes.

How Can OEM Engineers Diagnose and Mitigate Motor Noise?

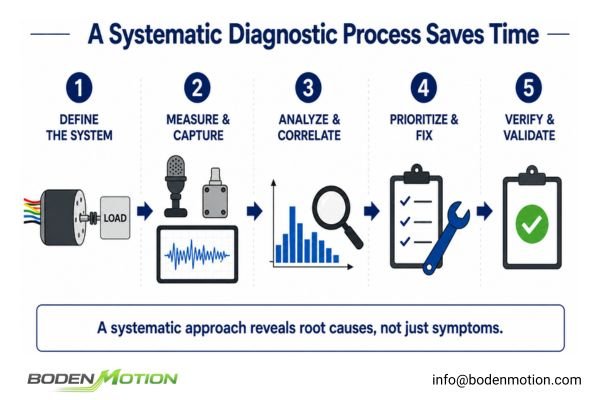

Diagnosing motor noise without data can feel like chasing a ghost. A systematic, measurement-based approach is the only efficient way to solve a complex system problem.

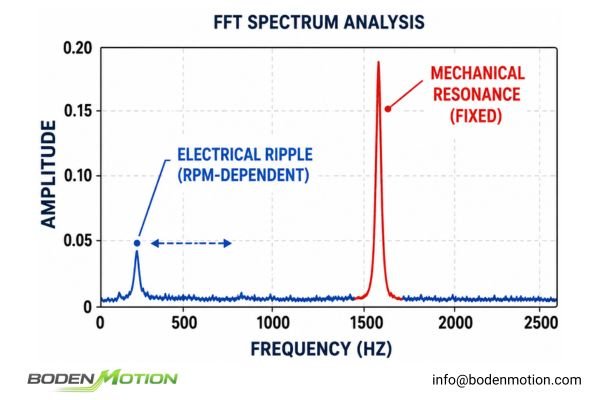

Engineers diagnose noise using an accelerometer and FFT spectrum analysis to distinguish between electrical ripple and mechanical resonance, allowing for targeted and highly effective mitigation. FFT vibration spectrum plot showing a speed-dependent peak (electrical ripple) and a large fixed-frequency peak (mechanical resonance)

Here is our practical troubleshooting workflow:

  1. Characterize the Noise: At what speed(s) does it occur? Does the pitch track with RPM? Does it only appear under load?
  2. Measure the Vibration: Attach an accelerometer to the motor and chassis. Perform a speed sweep from 0 to max RPM and record the vibration data.
  3. Analyze the Spectrum (FFT):

This data-driven approach allows us to apply a precise fix, saving our clients significant development time and cost.

Conclusion

Reducing BLDC motor noise is a system-level engineering task. The noise you hear is the end result of a cause-and-effect chain involving electrical ripple, mechanical tolerances, structural resonance, mounting, and load dynamics. Our role as an engineering partner is to diagnose this entire system and apply targeted, data-driven solutions.

If you are developing medical devices, precision instruments, or other noise-sensitive equipment, the BODENMOTION engineering team can help. We provide system-level analysis to diagnose and mitigate BLDC motor noise through driver optimization, mechanical design support, and fully integrated motor solutions.

📧 info@bodenmotion.com

FAQ: Motor Noise in BLDC Systems

Why does my BLDC motor make more noise at low speeds?

At low RPMs, torque ripple from commutation occurs at low frequencies (e.g., <500 Hz) that are easily audible as humming. The most effective engineering solution is to implement an advanced driver with Field-Oriented Control (FOC) to smooth out the current delivery and minimize this ripple.

Can mounting isolation reduce motor noise significantly?

Yes, it is one of the most effective mechanical solutions. Using compliant mounts like elastomeric dampers decouples the motor's high-frequency vibrations from the chassis, breaking the transmission path and often reducing perceived noise by 10 dB or more.

Does load type affect motor noise?

Absolutely. A pulsating load from a pump or the meshing frequency from a gearbox can introduce their own vibration signatures. Our system analysis includes characterizing the load's contribution to determine if the solution lies in the motor, the coupling, or the load itself.

Can driver tuning minimize noise?

Yes, it is a powerful tool. By tuning the driver's current loop, implementing FOC, and adjusting the PWM frequency above 20 kHz, we can significantly reduce the source of electrical vibration before it has a chance to excite any mechanical resonances.

Can BODENMOTION support noise reduction in OEM systems?

Yes, this is a core part of our application engineering support. We use vibration analysis and system modeling to provide data-driven recommendations, including driver tuning parameters, mechanical damping strategies, and the design of integrated motor solutions optimized for quiet operation.



  1. "Hearing range", https://en.wikipedia.org/wiki/Hearing_range. Research and technical standards confirm that PWM frequencies above 20 kHz are generally considered inaudible to humans, as the upper limit of human hearing is typically around 20 kHz; however, some individuals may perceive frequencies slightly above this threshold. Evidence role: statistic; source type: education. Supports: Shifting the PWM frequency above the range of human hearing (e.g., >20 kHz) can make the switching noise inaudible.. Scope note: Individual hearing sensitivity and environmental factors may affect audibility. ↩

  2. "Explaining the Basics of Bearing Preload - LILY Bearing", https://www.lily-bearing.com/resources/blog/explaining-the-basics-of-bearing-preload?srsltid=AfmBOoo-WCH0jZxzgdBxKAnBTlqJcYKFBnTmR9JvtXjmi1mwCOjM2BcN. Technical literature on bearing design confirms that excessive preload increases friction and heat generation, which can result in continuous noise such as hissing; however, the specific noise characteristics may vary depending on bearing type and application. Evidence role: mechanism; source type: education. Supports: too much preload increases friction, heat, and a continuous "hissing" noise. Scope note: Noise characteristics may differ based on bearing design and operational context. ↩

  3. "Mechanical resonance - Wikipedia", https://en.wikipedia.org/wiki/Mechanical_resonance. Standard mechanical engineering references explain that increasing the mass in a coupled system lowers its natural resonant frequencies due to the inverse relationship between mass and frequency in the resonance equation. Evidence role: mechanism; source type: education. Supports: Connecting a load also adds mass, lowering the system's natural resonant frequencies.. Scope note: This explanation assumes a simplified model and may not account for complex multi-degree-of-freedom systems. ↩

  4. "Evaluating diagnostic failures during system design - ScienceDirect", https://www.sciencedirect.com/science/article/abs/pii/S1755581718300075. Engineering best practice guidelines emphasize that systematic diagnostic processes improve efficiency and reduce time spent on troubleshooting compared to unsystematic trial-and-error approaches. Evidence role: expert_consensus; source type: institution. Supports: a systematic diagnostic process is essential to avoid wasting weeks on trial-and-error fixes.. Scope note: The support is based on general engineering consensus and may not address all specific OEM project contexts. ↩

  5. "vibration analysis in electric motors - DMC", https://www.dmc.pt/en/analise-de-vibracoes-em-motores-eletricos/. Engineering literature describes that vibration frequency peaks increasing linearly with motor speed are commonly associated with commutation ripple or rotor imbalance, as observed in FFT analysis of electric motors. Evidence role: mechanism; source type: education. Supports: A frequency peak that increases linearly with speed is caused by commutation ripple or rotor imbalance.. Scope note: This association is generally accepted in motor diagnostics but may not account for all possible sources of RPM-dependent peaks. ↩

About BODENMOTION Engineering Team

BODENMOTION Engineering Team specializes in miniature DC motor development and OEM customization, including brushless DC motors, coreless motors, and customized motor solutions for precision applications.

With hands-on experience in motor design, performance optimization, and reliability improvement, our engineers share practical insights from OEM development projects covering speed control, thermal management, noise reduction, and system integration.

Note:  All content and images in this article are original creations of BODENMOTION.
For permissions to reproduce or use any article content or images, please contact BODENMOTION.
