What Makes Coreless Motors Different From Standard DC Motors?

The key difference between a coreless motor and a standard DC motor is the rotor structure. Coreless motors use an ironless rotor, which greatly reduces rotating mass and inertia compared to an iron-core design.

This structural change directly impacts a motor's acceleration, response time, and cogging torque. These differences are critical for engineers to understand when selecting a motor for precision motion control.

From an integration standpoint, this is a significant architectural difference that changes the motor's dynamic behavior. It’s a key factor for any OEM engineer working on robotics, medical devices, or precision instruments¹. Let's look at the engineering details behind this.

What Is a Coreless Motor?

You need a motor for a precision task, but a standard motor introduces too much vibration or responds too slowly. The problem isn't the motor's power; it's the mass of its rotor.

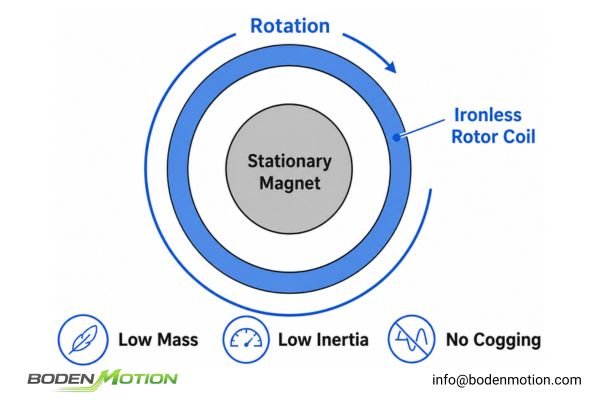

A coreless DC motor has an ironless rotor, where a self-supporting winding rotates around a stationary magnet. This design significantly reduces rotor mass and inertia.

The rotor is essentially a hollow coil of copper wire, held together by epoxy. This lightweight coil is the only rotating part. The permanent magnet is stationary and located inside the coil. This is different from a traditional DC motor, where heavy iron laminations support the windings.

This design has several important implications:

• Low Mass: With no iron in the rotor, the rotating mass is minimal.
• Low Inertia: Because inertia is a function of mass, the rotor can accelerate and decelerate quickly.
• No Cogging Torque²: The absence of iron teeth interacting with the magnets eliminates cogging, which contributes to smoother motion.

Key Engineering Insight:

A coreless DC motor isn't just a "smaller" motor. Its performance originates from its architecture. The design prioritizes low inertia and dynamic response from the ground up, making it a purpose-built solution for many precision motion tasks.

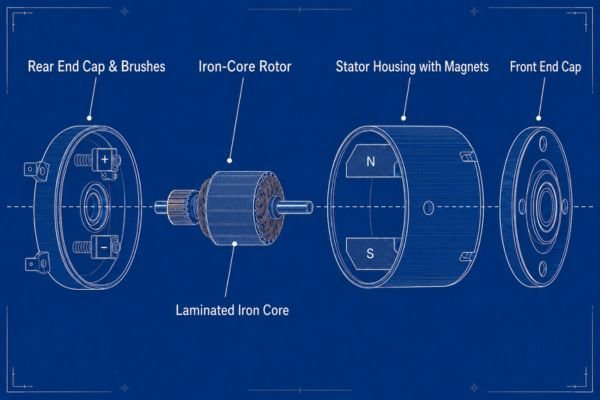

How Is a Standard DC Motor Built?

Standard DC motors are robust and cost-effective, but their heavy iron-core rotor creates performance trade-offs. This design can be a bottleneck in systems requiring high dynamic response.

A standard brushed DC motor is built with a rotor consisting of copper windings wrapped around a laminated iron core, which rotates inside a stator with permanent magnets.

The rotor, or armature, is constructed by stacking thin, insulated iron laminations to form a solid core. This core has slots where the copper windings are inserted.

This iron core serves two main purposes:

1. Magnetic Flux Path: It concentrates the magnetic field from the stator magnets to increase torque output.
2. Structural Support: It provides a rigid frame for the copper windings.

However, this design comes with a drawback: mass. The iron core is heavy, and this mass must be accelerated and decelerated. This results in high rotor inertia, which limits the motor's ability to change speed quickly. While cost-effective, this inherent inertia makes standard DC motors less suitable for applications demanding rapid start-stop motion³.

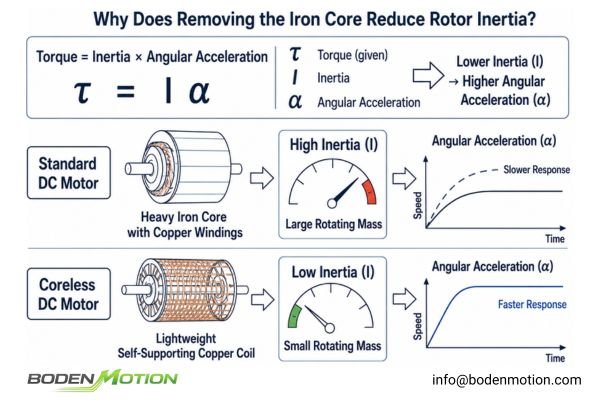

Why Does Removing the Iron Core Reduce Rotor Inertia?

Your system needs to accelerate instantly, but the motor lags behind the control signal. The problem isn't always a lack of power; it's the inertia the motor is fighting.

Rotor inertia is a measure of an object's resistance to rotational acceleration. The dense iron core in a standard motor is a primary contributor to this resistance.

The physics are straightforward. For a motor, the relationship is Torque = Inertia × Angular Acceleration (τ = Iα).

This equation shows that for a given amount of torque (τ), a lower inertia (I) will result in higher angular acceleration (α). By removing the heavy iron core, coreless motors substantially reduce rotor inertia⁴. In some projects, a coreless motor can achieve the target acceleration with less torque than a larger iron-core motor simply because its inertia is much lower.

Motor Type	Typical Rotor Structure	Resulting Inertia
Standard DC Motor	Heavy iron core with copper windings	High
Coreless DC Motor	Lightweight self-supporting copper coil	Low

Key Engineering Insight:

In many precision motion systems, reducing rotor inertia is a more effective strategy for improving response time than simply increasing motor torque. A low-inertia system responds faster, settles quicker, and follows a control signal with higher fidelity.

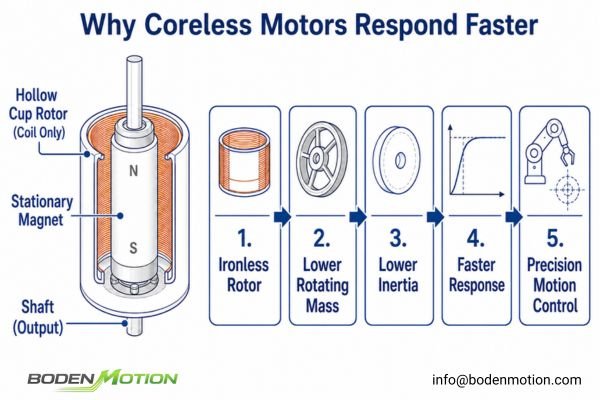

How Do Coreless Motors Improve Speed Response and Acceleration?

Your pick-and-place robot overshoots its target, or your medical pump can't pulse fluid fast enough. The root cause is often a motor that can't change speed or direction quickly enough.

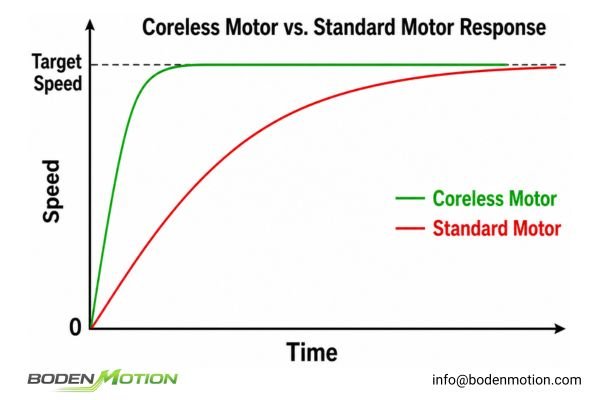

The low rotor inertia of coreless motors allows them to accelerate and decelerate faster than many iron-core motors, enabling rapid direction changes and shorter positioning times.

This fast dynamic response translates into measurable performance gains in OEM equipment. When a motor can start, stop, and change direction quickly, the entire system can become more precise and efficient.

The benefits often include:

• Faster Startup: The motor reaches its target speed in less time.
• Rapid Direction Changes: Useful for oscillating mechanisms or scanning applications.
• Reduced Control Lag: The motor can follow complex motion profiles with higher fidelity.
• Shorter Settling Time: In positioning tasks, the motor stops with less overshoot, which can reduce cycle times.

This is why coreless motors are often used in applications that rely on repeated, fast, and short movements rather than just continuous rotation⁵.

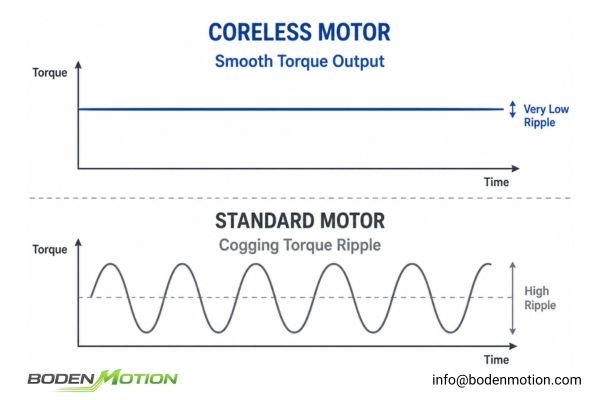

Why Do Coreless Motors Produce Less Cogging and Smoother Motion?

Your high-resolution scanner shows banding artifacts, or your handheld diagnostic tool has a noticeable vibration. This subtle interference might be coming from your motor's cogging torque.

Coreless motors do not have cogging torque because their ironless rotor has no teeth to create preferential alignment with the stator magnets. This helps achieve smoother rotation.

Cogging torque is the magnetic detent torque you can feel when turning the shaft of an unpowered iron-core motor by hand.⁶ It's caused by the permanent magnets in the stator attracting the iron teeth of the rotor. As the rotor turns, it tends to "settle" in these positions, creating a ripple in the torque output.

This torque ripple can be a problem in sensitive systems, causing:

• Vibration and audible noise
• Velocity instability at low speeds
• Positioning errors in precision systems

Since a coreless motor has no iron in its rotor, this cogging effect is absent.⁷ This results in smoother rotation with lower torque ripple. However, overall system smoothness can still be influenced by other factors like bearings, brushes, the connected gearbox, and the load itself.

System-Level Observation:

In many precision applications, motion smoothness is more important than maximum torque. A motor that delivers its torque smoothly allows for better control at low speeds and reduces system-level vibration.

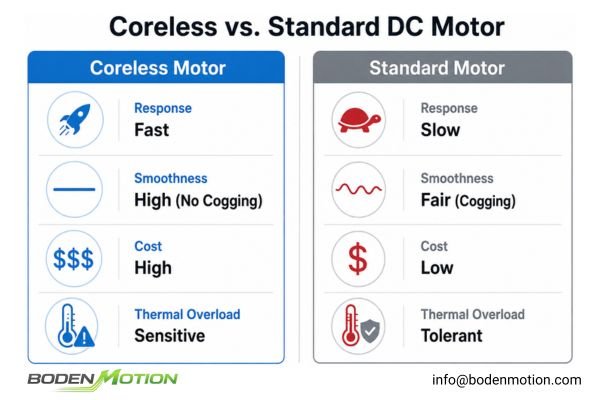

What Are the Main Trade-Offs Between Coreless Motors and Standard DC Motors?

A coreless motor is not automatically the right choice for every application. Like any engineering decision, choosing a motor requires balancing performance against cost and robustness.

While coreless motors are well-suited for response and smoothness, standard DC motors are often more cost-effective and can be more tolerant of high-load or high-temperature conditions.

Here is a practical breakdown of the key trade-offs I consider during motor selection for an OEM project:

Factor	Coreless Motor	Standard DC Motor	Engineering Consideration
Rotor Inertia	Low	High	Choose coreless for faster acceleration.
Response Speed	Fast	Slower	Important for dynamic positioning systems.
Low-Speed Smoothness	High (No Cogging)	Fair (Cogging Possible)	Coreless is better for scanning and metering.
Cost	Higher	Lower	Standard motors benefit from economy of scale.
Thermal Overload	Lower thermal mass	Higher thermal mass	The iron core acts as a natural heat sink.
Best Use Case	Precision & Fast Response	General-Purpose & High Torque	Match the motor to the application's priority.

The higher cost of coreless motors comes from their more complex manufacturing process. Their lower thermal mass also means they can be more sensitive to sustained overloads. The right choice is not about which motor is "better," but which motor's characteristics align with your application's most critical requirements.

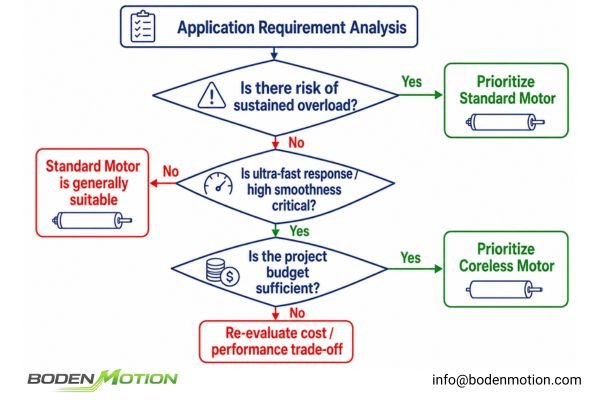

When Should OEM Engineers Choose a Coreless Motor?

You've identified a need for fast response and smooth motion, but is a coreless motor the right investment for your project? The application's motion profile and system constraints define the answer.

Choose a coreless motor for applications where dynamic performance—such as fast acceleration, precise positioning, and low vibration—is a higher priority than lowest unit cost or resistance to heavy thermal abuse.

Based on experience with OEM projects, here are scenarios where a coreless motor is often a suitable choice⁸:

• Fast Start-Stop Motion: Pick-and-place robots, component sorters, and rapid fluid dispensing.
• Precision Positioning: Optical systems, laser scanners, and semiconductor wafer handling.
• Low-Vibration Operation: Handheld medical devices, high-end optical equipment, and sensitive lab instruments.
• Compact & Lightweight Devices: Drones, portable tools, and robotic end-effectors.

However, a coreless motor is not always the ideal solution. Consider a standard motor for:

• Low-Cost Consumer Products: Where unit cost is the primary driver.
• Harsh Overload Conditions: Applications with frequent stalls where the iron core's thermal mass is an advantage.
• Constant Speed Applications: Systems like fans or pumps where dynamic response is not a priority.

The final decision should come from a careful analysis of the duty cycle, thermal environment, motion requirements, and overall project budget.

Conclusion

Coreless motors are a distinct class of motor defined by their low-inertia, ironless rotor. This architecture allows for higher acceleration and smoother motion in many precision applications.

If your OEM project's goals include fast, precise, or smooth motion, a coreless motor is worth evaluating. Our engineering team can help analyze the trade-offs for your specific application.

info@bodenmotion.com

FAQ: What Makes Coreless Motors Different From Standard DC Motors

What is the biggest difference between coreless motors and standard DC motors?

The biggest difference is the rotor structure. Coreless motors use a lightweight, self-supporting copper coil as the rotor, which significantly reduces inertia and eliminates cogging torque compared to the heavy iron-core rotor in a standard motor.

Are coreless motors always better than standard DC motors?

No. Coreless motors are well-suited for applications requiring fast response, smooth motion, and low vibration. Standard DC motors are often a better choice for general-purpose, high-torque applications where cost is a primary concern and dynamic performance is less critical.

Why do coreless motors respond faster?

They have much lower rotor inertia. Because Torque = Inertia × Acceleration, less torque is required to achieve rapid acceleration and deceleration, allowing them to respond to control signals very quickly.

Do coreless motors produce less vibration?

Typically, yes. Their ironless rotor design eliminates cogging torque, which is a primary source of vibration and torque ripple in many standard motors. This contributes to smoother motion, especially at low speeds.

Where are coreless motors commonly used?

They are widely used in high-performance OEM applications such as medical devices, robotics, optical systems, laboratory instruments, precision pumps, and compact automation equipment where speed and precision are critical.
