Custom DC Motor vs Standard Motor: What Is the Difference?

Most OEM projects start with standard catalog motors, but system requirements can quickly reveal their limits. This often leaves engineers deciding whether to adapt their system or specify a custom motor solution.

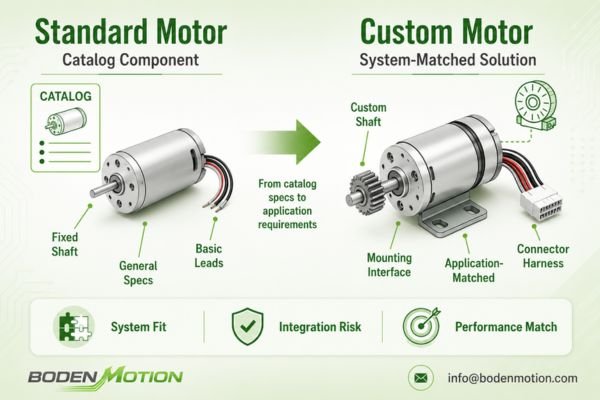

The choice between a standard and custom DC motor depends on your application's specific performance, integration, and lifecycle requirements—not just the motor's datasheet specifications.

Deciding between an off-the-shelf component and a purpose-built one is a critical engineering crossroad.¹ The path you choose impacts everything from initial prototype cost to long-term reliability and production scalability. From an integration perspective, it’s a system-level decision, and I've seen projects face unexpected hurdles by underestimating the long-term trade-offs.² Let's break down the practical differences.

What Is a Standard DC Motor?

Your project needs a motor, so you check a catalog and find one that seems to fit. That's a standard DC motor—an off-the-shelf component designed for general-purpose use.

A standard DC motor is produced with fixed specifications to serve a broad market, offering a balance of performance characteristics rather than being optimized for one specific application.

From my experience, standard motors are the go-to for initial proof-of-concept work. They are readily available, affordable, and their performance is well-documented. You can order one today and have it on your test bench quickly. This is their primary advantage: speed to market for initial prototyping.

These motors are manufactured in high volumes based on a predefined set of parameters:

• Fixed Voltages: Typically common values like 12V, 24V, or 48V.
• Standard Speeds/Torques: A few catalog options for each frame size.
• Generic Mechanical Interfaces: Standard shaft diameters and lengths, and common mounting hole patterns.

However, the datasheet rarely tells the full story. A standard motor is optimized for its own manufacturing efficiency, not your system's efficiency. Its "general-purpose" design means it wasn't specifically built for your unique duty cycle, thermal environment, or compact space constraints. It's a great starting point, but it's often not the most suitable endpoint for a high-performance OEM device.

What Is a Custom DC Motor?

You have a compact medical device with a unique power source and strict noise limits. A standard motor won't fit, runs too hot, or is too loud. You need a motor built for your application.

A custom DC motor is an application-specific solution where electrical and mechanical parameters are modified to meet the precise requirements of an OEM system.

Unlike a standard motor, a custom motor project starts with your application's problems, not a list of available specs. The design process is reversed.³ We don't ask, "Which motor fits?" We ask, "What problems must this motor solve?"

This involves a deep dive into the system's operational reality:

• Performance Goals: What specific speed, torque, and efficiency points are critical?
• Integration Constraints: What are the exact spatial dimensions, mounting requirements, and environmental conditions?
• Control Strategy: How will the motor interact with the driver and encoder? What level of precision is needed?

System-Level Observation:

With a custom motor, you're not just buying a component; you're co-developing a solution. The engineering discussions shift from "Can we make this motor work?" to "How do we design a motor for this task?" This collaborative process enables better system-level optimization and can help address issues that might otherwise show up as field failures.

Why Do OEM Projects Often Move Beyond Standard Motors?

Many OEM projects begin with standard motors for the initial prototype. But once the system is assembled, real-world limitations often surface, prompting a move toward OEM motor customization.

Standard motors frequently struggle to meet the specialized demands of compact, high-performance devices, particularly regarding space, noise, motor thermal management, and unique power requirements.

I've seen this happen countless times. The prototype works on the bench, but once it's in the final product enclosure, problems appear. Heat builds up, an unexpected vibration emerges, or the battery drains faster than calculated. These are typically not motor failures but system integration failures caused by a component mismatch.

Common drivers for moving to a custom motor solution include:

• Space & Weight Constraints: The standard motor is physically too large or heavy for a portable device like a handheld medical scanner or a robotic end-effector.
• Thermal Limitations: In a sealed enclosure, a general-purpose motor running at its limit generates too much heat, risking damage to itself or surrounding electronics.
• Noise & Vibration: For laboratory instruments or medical devices, the audible noise or micro-vibrations from a standard motor can be unacceptable.
• Unique Power Source: A device running on a custom battery pack might need a motor optimized for an unusual voltage (e.g., 18.5V) to improve efficiency and runtime.
• Specific Duty Cycles: The motor must withstand rapid start-stop cycles or long periods of high torque, something a standard motor rated for continuous duty may not handle reliably.

A custom motor isn't about chasing maximum power. It's about achieving better system compatibility, where the motor's performance profile is a closer match to the application's demands.

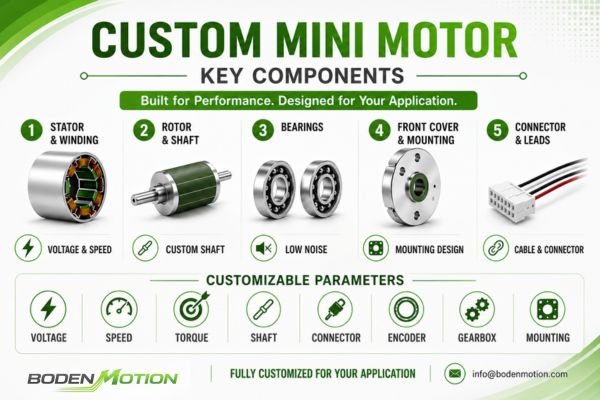

Which Motor Parameters Are Most Commonly Customized?

When we discuss "customization," it's more than just changing the shaft length. It involves a holistic optimization of the motor's core characteristics to match the application's physics, a process often called speed-torque optimization.

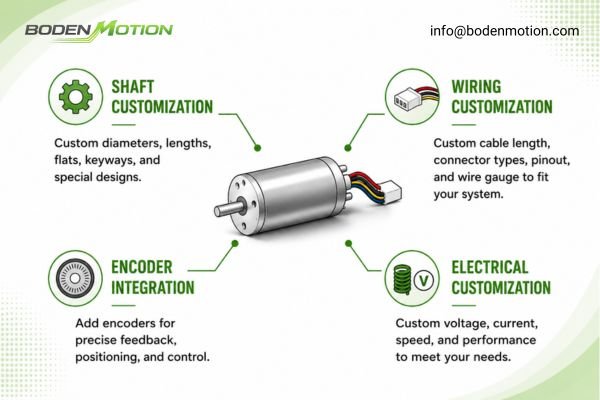

The most common customizations involve modifying the winding, voltage rating, mechanical interfaces like the shaft and housing, and integrating feedback systems like encoders.

In my experience, the most impactful customizations are those that solve a specific system-level problem. Here’s a breakdown of what we typically modify and why:

Category	Parameter	Common OEM Reason for Customization
Electrical	Voltage Rating & Winding	Match a specific power supply for better efficiency; optimize speed-torque curve.
	Speed-Torque (Kv/Kt)	Adjust winding to optimize for a specific operating point, reducing current draw and heat.
Mechanical	Shaft Customization	Custom length, diameter, flats, or gears for direct mechanical integration.
	Mounting Interface	Custom flange or hole pattern to eliminate adapter brackets and simplify assembly.
	Housing/Form Factor	Modified dimensions to fit into a compact or uniquely shaped enclosure.
Control	Encoder Integration	Add an optical or magnetic encoder for precise closed-loop position and speed control.
	Wiring & Connectors	Custom cable lengths and connectors to simplify final assembly and reduce failure points.
Environmental	Noise & Vibration	Modifications to bearings, balancing, and structure to meet low-noise targets.
	IP Rating	Sealing the motor for protection against dust or moisture ingress4.

Design Trade-Off:

For example, customizing the winding for a higher torque constant (Kt) allows the motor to produce the required torque with less current. This also results in a lower speed constant (Kv). While this is excellent for thermal management in high-load scenarios, it might require a higher voltage to reach a certain speed. This is a core trade-off we evaluate to find the best balance for the entire operating cycle.

When Is a Custom Motor More Cost-Effective Than a Standard Motor?

Engineers and procurement managers often see the higher unit price of a custom DC motor and assume it's the more expensive option. This can be a frequent oversight if the total cost of ownership is not considered.

A custom motor can be more cost-effective when its price premium is less than the combined costs of system redesigns, adapter parts, performance compromises, and reliability risks associated with using a standard motor.

Think about the hidden costs of forcing a standard motor into a specialized application. I've seen teams spend weeks designing a custom mounting bracket or a complex shaft adapter. That's engineering time and manufacturing cost that could have been reduced.

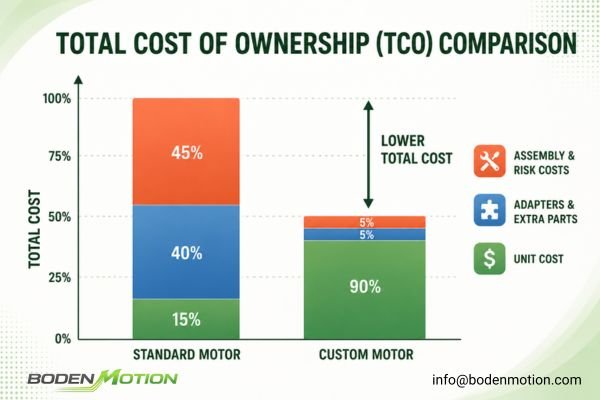

Why Can a More Expensive Motor Reduce Total Project Cost?

The true cost of a motor isn't just its unit price; it's the impact on your project over its lifecycle.

A custom motor can lower the Total Cost of Ownership (TCO) by:

• Simplifying Mechanical Integration: Custom shaft customization and mounting flanges can eliminate costly adapters, reducing part count and assembly time.
• Reducing Redesign Risk: Designing the motor to fit the system from the start can prevent late-stage issues like overheating that may force redesigns and project delays.
• Improving System Efficiency: An optimized motor draws less current, which can lead to a smaller power supply. It also generates less heat, potentially reducing the need for fans or heatsinks.⁵
• Increasing Reliability: A motor designed for the application's specific duty cycle and thermal environment is less likely to fail prematurely, reducing potential warranty claims.

Common OEM Mistake:

A buyer negotiates a 10% discount on a standard motor, saving $5 per unit. But the engineering team then has to add a $3 adapter bracket and a $2 connector pigtail, and the assembly team spends an extra 60 seconds per unit putting it all together. The "cheaper" motor can end up costing more and introducing more supply chain and quality risks.

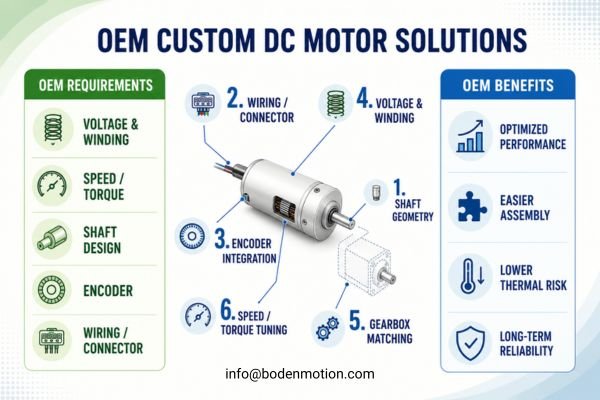

What Custom DC Motor Solutions Are Available for OEM Applications?

For OEM applications, the goal of customization is to reduce system integration risks and improve performance in the final product. At BODENMOTION, our engineering process focuses on evaluating requirements for voltage, winding, shaft design, gearbox matching, encoder integration, and wiring.

This approach ensures the custom motor solution is tailored to your system's unique challenges, helping to optimize performance, simplify assembly, and enhance long-term reliability.

Custom Option	Typical Purpose & OEM Benefit
Voltage & Winding	Matches motor winding to non-standard voltages to improve runtime and efficiency in portable devices.6
Speed/Torque Tuning	Adjusts the motor constant (Kv) to deliver better efficiency at your operating point, reducing heat.
Shaft Customization	Integrates pinions or custom geometries onto the shaft, eliminating adapters and improving concentricity.
Encoder Integration	Adds an optical or magnetic encoder for closed-loop position and speed control in robotics.7
Gearbox Matching	Integrates a planetary or spur gearbox, delivering high torque in a compact package.
Connector & Wiring	Provides custom wire lengths and connectors for a plug-and-play solution on your assembly line.

Real Integration Challenge:

We worked with a medical diagnostics company whose peristaltic pump motor ran too hot in a sealed enclosure. We developed a custom winding optimized for their low-speed, high-torque operating point. The new design reduced heat generation significantly, which helped them meet their enclosure size target without adding a heatsink. This is a good example of solving a thermal problem with electrical optimization.

What Common Mistakes Do Buyers Make When Choosing Between Custom and Standard Motors?

Most motor selection failures don't come from a bad motor but from a flawed selection process. The initial assumptions are often where things go wrong.

A frequent mistake is viewing the motor as an isolated component, ignoring its deep interaction with the mechanical structure, thermal environment, and control system.

Here are some of the most common—and costly—mistakes I see in motor selection:

1. Focusing Solely on Unit Price: Ignoring the total cost of ownership, including adapters, assembly labor, and potential warranty costs.
2. Ignoring the Duty Cycle⁸: Selecting a motor based on its continuous torque rating when the application involves high-torque pulses, which can lead to overheating.
3. Using an Oversized Motor: Choosing a bigger motor to "be safe," which adds unnecessary weight, cost, and size, and often operates inefficiently.
4. Overlooking Thermal Management: Testing a motor on an open bench and assuming it will perform the same inside a sealed plastic enclosure.
5. Not Planning for Production Scale: Prototyping with a standard motor that can't be reliably sourced in volume or has too much unit-to-unit performance variation.
6. Starting Customization Too Late: Trying to customize a motor after the device's mechanical design is frozen, which severely limits the available options. The best time to discuss OEM motor customization is during the initial concept phase.

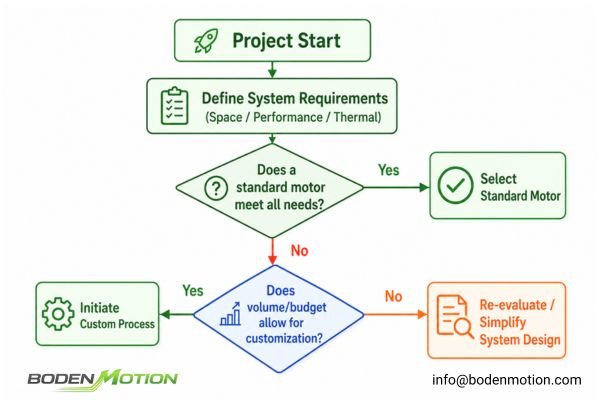

The root cause of these issues is almost always an incomplete definition of the application requirements. A technical discussion with a motor engineer early in a project can prevent significant redesign work later.

Conclusion

Choosing the right motor is about matching the component to the system, not forcing the system to fit the component. For specialized OEM equipment, a custom motor is often a highly effective solution.

If you're facing integration challenges with an off-the-shelf motor, the BODENMOTION team can help you analyze the system-level trade-offs and determine if a custom solution is the right fit for your project.

info@bodenmotion.com

FAQ: Custom DC Motor vs Standard Motor

What is the typical lead time for a custom motor prototype?

Prototype lead times are typically 4–8 weeks after design finalization. This accounts for material sourcing, any custom tooling, and initial assembly, so it's important to factor this into your project timeline.

Is there a Minimum Order Quantity (MOQ) for custom motors?

Yes, production runs usually have an MOQ. It varies based on the customization level—from a few hundred units for simple shaft or wire changes to thousands for a fully custom design with new tooling.

What is NRE (Non-Recurring Engineering) cost?

NRE is a one-time charge covering the engineering and tooling costs for a new custom design. It may be reduced or waived for minor modifications or very high-volume projects.

How does the customization process start?

The process begins with a technical discussion about your application requirements: space constraints, power source, duty cycle, thermal limits, and performance goals. This information allows us to define the right specifications for your custom motor solution.

---
