The BDCM1230 coreless precious metal brushed DC motor is designed for OEM applications requiring compact size, low starting voltage, and improved output capability, offering 6–24V configurations, rated speeds up to 12000 rpm, and 1–3W power for precision instruments and miniature drive systems.
| Voltage | 6 V / 12 V / 15 V / 24 V DC |
|---|---|
| Power | 1–3 W |
| Speed | 9120–12000 rpm (Rated) |
| Torque | 1.4–2.7 mN·m (Rated) |
| Lifetime | 1,000–3,000 hours |
| Weight | 17 g |

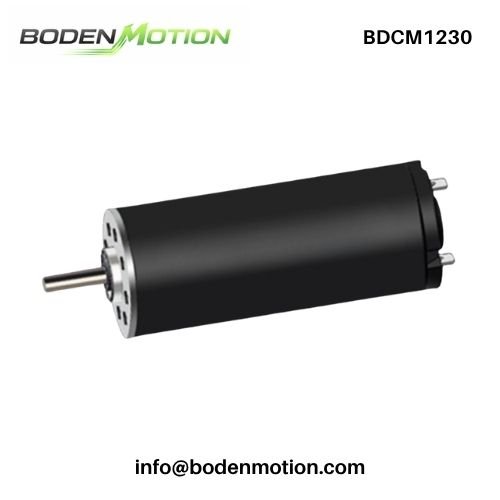

The BDCM1230 coreless precious metal brushed DC motor is designed for OEM applications requiring compact size, low starting voltage, and higher output capability than smaller coreless motor platforms. With a Φ12 × 30 mm body and a weight of only 17 g, it provides an excellent balance between compact dimensions and increased power for miniature motion systems.
Supporting 6V, 12V, 15V, and 24V configurations, the BDCM1230 delivers rated speeds from 9120 to 12000 rpm with a power range of 1–3W. Its precious metal brush system offers smooth operation, low electrical noise, and reliable low-voltage startup, making it well suited for precision equipment, portable devices, and compact OEM drive assemblies.
All values are measured under standard laboratory conditions. Actual performance may vary depending on load, operating environment, and driver configuration.
| Motor Model | Unit | BDCM1230-01 | BDCM1230-02 | BDCM1230-03 | BDCM1230-04 |
|---|---|---|---|---|---|
| Value at Rated Voltage | |||||
| At Nominal | |||||
| Nominal Voltage | V/DC | 6 | 12 | 15 | 24 |
| Nominal Speed | rpm | 10800 | 9120 | 10800 | 12000 |
| Nominal Current | A | 0.40 | 0.20 | 0.20 | 0.20 |
| Nominal Torque | mN·m | 1.4 | 1.5 | 1.8 | 2.7 |
| Free Load | |||||
| No-load Speed | rpm | 13500 | 11400 | 13500 | 15000 |
| No-load Current | mA | 22 | 16 | 15 | 8 |
| At Max. Efficiency | |||||
| Max. Efficiency | % | 78.5 | 77.7 | 79.9 | 80.0 |
| Speed | rpm | 12150 | 10203 | 12218 | 13575 |
| Current | A | 0.189 | 0.092 | 0.089 | 0.090 |
| Torque | mN·m | 0.7 | 0.8 | 0.9 | 1.3 |
| At Max. Output Power | |||||
| Max. Output Power | W | 2.5 | 2.3 | 3.3 | 5.3 |
| Speed | rpm | 6750 | 5700 | 6750 | 7500 |
| Current | A | 0.9 | 0.4 | 0.5 | 0.5 |
| Torque | mN·m | 3.5 | 3.8 | 4.6 | 6.7 |
| At Stall | |||||
| Stall Current | A | 1.69 | 0.78 | 0.89 | 0.90 |
| Stall Torque | mN·m | 7.0 | 7.6 | 9.2 | 13.4 |
| Motor Constants | |||||
| Terminal Resistance | Ω | 3.55 | 15.38 | 16.85 | 26.67 |
| Terminal Inductance | mH | 0.25 | 0.59 | 0.65 | 0.98 |
| Torque Constant | mN·m/A | 4.19 | 9.91 | 10.49 | 15.11 |
| Speed Constant | rpm/V | 2250 | 950 | 900 | 625 |
| Speed/Torque Constant | rpm/mN·m | 1932.1 | 1495.9 | 1462.3 | 1115.5 |
| Mechanical Time Constant | ms | 5.7 | 4.3 | 4.5 | 3.2 |
| Rotor Inertia | g·cm² | 0.28 | 0.27 | 0.29 | 0.27 |
| Number of Pole Pairs | — | 1 | 1 | 1 | 1 |
| Number of Phases | — | 5 | 5 | 5 | 5 |
| Weight | g | 17 | 17 | 17 | 17 |
| Typical Noise Level | dB | ≤38 | ≤38 | ≤38 | ≤38 |
Not sure how to interpret model differences? See the model code breakdown below ↓
Proper installation helps maintain stable performance, reduce vibration, and maximize motor service life during OEM integration.
Compact Mechanical Structure

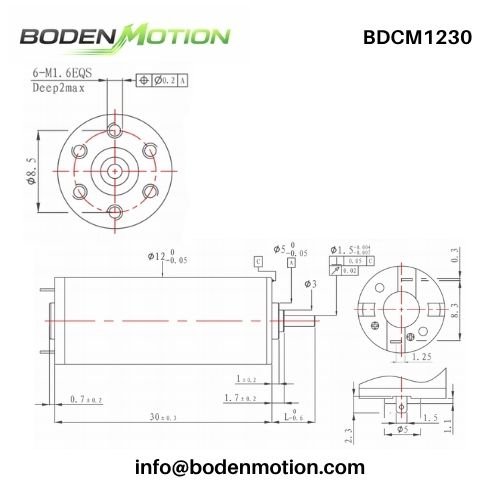

The BDCM1230 features a Φ12 × 30 mm cylindrical housing, providing additional internal space compared with shorter models while maintaining a compact footprint for embedded systems.
Bearing & Shaft Protection
Axial play is 0.05–0.15 mm, with radial play ≤0.012 mm. Maximum dynamic axial load is 0.8 N, maximum radial load (5 mm from the flange) is 0.5 N, and maximum static press-fit force is 35 N. Proper shaft alignment helps prevent premature bearing wear.
Operating Environment
Recommended operating temperature is -20°C to +80°C, with relative humidity below 90% RH (25°C). Maximum rotor temperature should not exceed 85°C.
Optional Gearbox Integration
A planetary gearbox is available for applications requiring higher output torque and lower operating speed without changing the motor platform.
Customizable parameters are available to support OEM integration and application-specific performance requirements.
| Customization Item | Available Options / Description |
|---|---|
| Voltage | Configurable according to system requirements |
| Speed Curve | Optimized for different load characteristics |
| Shaft Type | Straight shaft, D-cut shaft, or custom-machined shaft |
| Shaft Length | Customized according to installation requirements |
| Gearbox Option | Optional planetary gearbox |
| Wiring / Cable Length | Custom cable length and routing |
| Connector Type | Bare wire, JST, Molex, or customized connectors |
| Mounting Interface | Mechanical adaptation for OEM assemblies |
| Brush Configuration | Precious metal brush configuration optimized for low-noise operation |
| Output Terminal | Customized electrical connection solutions |
From an OEM perspective, the BDCM1230 is suitable for compact equipment requiring smooth operation, reliable low-voltage startup, and moderate output capability.
Germany | Medical Equipment Manufacturer
Application: portable diagnostic instrument
Feedback: Smooth startup and low operating noise improved the user experience in handheld equipment.
Japan | Precision Instrument OEM
Application: compact optical adjustment mechanism
Feedback: Stable speed performance and compact dimensions simplified mechanical integration.
United States | Industrial Equipment Supplier
Application: miniature actuator module
Feedback: The higher output capability compared with smaller models provided greater flexibility during product development.
[BDCM1230 Coreless Precious Metal Brushed DC Motor Specification (PDF)]
A1: Although precious metal brushed motors provide excellent low-voltage startup performance, starting reliability also depends on load inertia, power supply capability, and mechanical resistance. Matching the motor with the actual application load is essential for stable startup.
A2: Nominal speed is measured under rated conditions. In practical applications, supply voltage fluctuations, mechanical transmission losses, and load torque all affect the final operating speed.
A3: The BDCM1230 is better suited for applications requiring higher output power and greater torque reserve while maintaining a compact form factor. It offers additional performance margin without significantly increasing installation size.
A4: Yes. Samples are typically shipped via FedEx or DHL for fast delivery. Bulk orders can be arranged by air freight or sea freight depending on project requirements and destination.
A5: Yes. The BDCM1219 is recommended for applications where installation space and weight are more critical. Compared with the BDCM1230, it has a shorter Φ12 × 19 mm body while maintaining the advantages of a coreless precious metal brushed motor, making it suitable for ultra-compact OEM designs.
