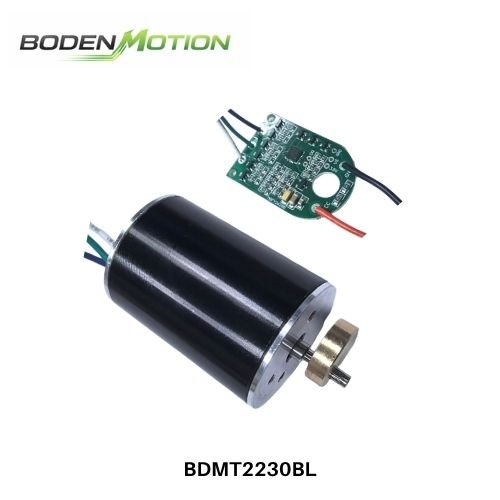

The BDMT2230BL brushless inner motor is a compact BLDC solution for precision OEM systems, offering 6–24V operation, high-speed performance up to 12000 rpm, and efficient low-power output, enabling smooth control and reliable integration in space-constrained electromechanical applications.
| Voltage | 6 V / 12 V / 24 V DC |
|---|---|
| Power | 1–6 W |
| Speed | 6000–12000 rpm (r/min) |
| Torque | 1.84–2.79 mN·m |
| Lifetime | 10,000 hours |
| Weight | 300g |
The BDMT2230BL brushless inner motor is a low-power BLDC solution designed for compact OEM systems requiring efficient high-speed drive. Supporting 6–24V input and reaching up to 12000 rpm, it is well suited for precision devices such as portable instruments, small automation modules, and embedded actuation systems.
From an integration standpoint, this motor focuses on controlled speed response and efficient torque delivery within a 1–6W power range, making it suitable for continuous operation in space-constrained designs. Its performance characteristics help simplify driver matching while maintaining consistent behavior under typical light-load conditions.

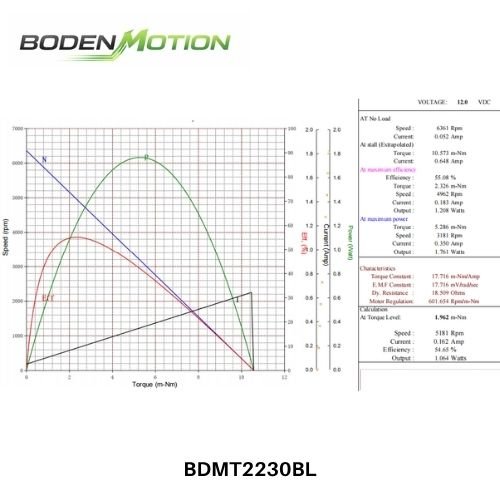

| Parameter | BDMT2230BL-01 | BDMT2230BL-02 | BDMT2230BL-03 |
| Motor Type | Brushless DC Motor (BLDC) | Brushless DC Motor (BLDC) | Brushless DC Motor (BLDC) |
| Voltage | 6.0 VDC | 12.0 VDC | 24.0 VDC |
| No-load Current | 0.12 A (120 mA) | 0.05 A (50 mA) | 0.07 A (70 mA) |
| No-load Speed | 6000 rpm (r/min) | 6350 rpm (r/min) | 12000 rpm (r/min) |
| Max Efficiency Current | 0.30 A | 0.18 A | 0.23 A |
| Max Efficiency Speed | 4500 rpm (r/min) | 4960 rpm (r/min) | 9230 rpm (r/min) |
| Torque @ Max Efficiency | 2.40 mN·m | 1.84 mN·m | 2.79 mN·m |
| Output Power @ Max Efficiency | 1.13 W | 0.96 W | 2.70 W |
| Efficiency @ Max Efficiency Point | 63.5% | 45.0% | 48.0% |
| Stall Torque | 139.7 mN·m | 8.4 mN·m | 12.1 mN·m |
| Stall Current | 0.88 A | 0.64 A | 0.78 A |
| Weight | ~300 g (0.66 lb) | ~300 g (0.66 lb) | ~300 g (0.66 lb) |
| Output Power Range | 1–6 W | 1–6 W | 1–6 W |
| Lifetime | >10,000 hours | >10,000 hours | >10,000 hours |

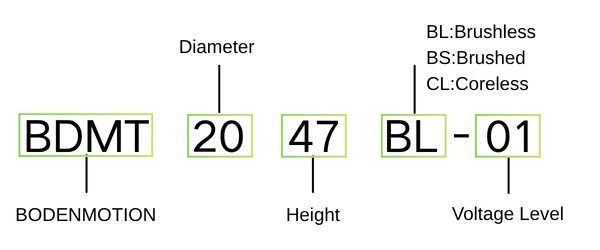

Not sure how to interpret model differences? See model code breakdown below ↓
Customizable parameters are available to support system-level integration and application-specific performance requirements.

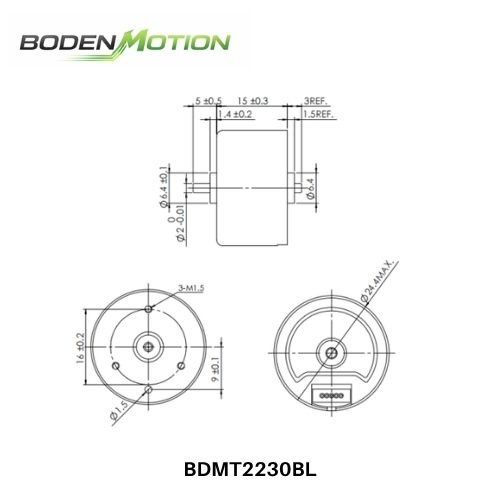

| Customization Item | Available Options / Description |
|---|---|
| Voltage | Configurable according to system requirements and platform compatibility |
| Speed Curve | RPM–torque characteristics can be tuned for specific load profiles and control strategies |
| Torque Output | Adjustable within design limits to match application-specific load demands |
| Shaft Type | Straight shaft, D-cut shaft, or custom-machined configurations available |
| Shaft Length | Customizable based on mechanical integration and assembly constraints |
| Housing / Shell | Structural design and material options available for different environmental and mechanical requirements |
| Mounting Interface | Standard or customized flange and mounting hole patterns for seamless system integration |
| Wiring / Cable Length | Configurable cable length to match system layout and installation needs |
| Connector Type | Bare wire, JST, Molex, or customized connector solutions for different interfaces |
| Insulation Class | Thermal insulation grade can be selected based on operating temperature requirements |
| Environmental Protection | Optional dust protection and partial sealing solutions for improved durability |
| Output Signal | Customizable signal interface including PWM, FG (speed feedback), CW, CCW, and BRAKE for control system integration |
From an OEM selection perspective, the BDMT2230BL is suited for compact, low-power systems requiring high-speed rotation and efficient motion control.
The following feedback is based on typical OEM integration use cases of the BDMT2230BL BLDC motor in compact precision drive systems. It reflects how similar customers evaluate performance in real engineering environments.
United States | Portable Medical Device Manufacturer
Application: portable diagnostic and micro-fluid control systems
Feedback: The motor performs well in low-power operation with stable speed response, supporting consistent control in compact medical platforms.
Germany | Industrial Automation Supplier
Application: small-scale automation and actuator modules
Feedback: Integration is straightforward, and the motor maintains predictable behavior under variable light-load conditions, reducing tuning effort.
Japan | Precision Instrument OEM
Application: analytical and measurement equipment
Feedback: Smooth operation and low vibration characteristics help maintain measurement stability in sensitive testing environments.
South Korea | Smart Device Manufacturer
Application: compact smart systems and embedded motion units
Feedback: The motor’s high-speed capability in a small form factor improves responsiveness in tightly integrated electromechanical designs.
[BDMT2230BL Compact BLDC Motor Specification (PDF)]
A1: Speed variation is typically related to load matching and controller configuration; the BDMT2230BL is designed to operate within an efficient control window for stable OEM integration.
A2: Thermal behavior is controlled through optimized winding and magnetic design, ensuring stable operation under low-power continuous duty conditions.
A3: The brushless structure and balanced rotor design help minimize vibration and acoustic noise, making it suitable for sensitive compact systems.
A4: Sample delivery is typically 3–5 days. Mass production lead time is usually 20–30 days, depending on order volume and customization requirements.
A5: Yes, the higher power option is BDMT2047BL, designed for applications requiring stronger torque output and higher power handling capability.
If you are developing medical devices, industrial automation systems, UAV platforms, or precision electromechanical equipment, the BDMT2230BL brushless inner motor provides a reliable OEM solution for compact, low-power motion control applications.
