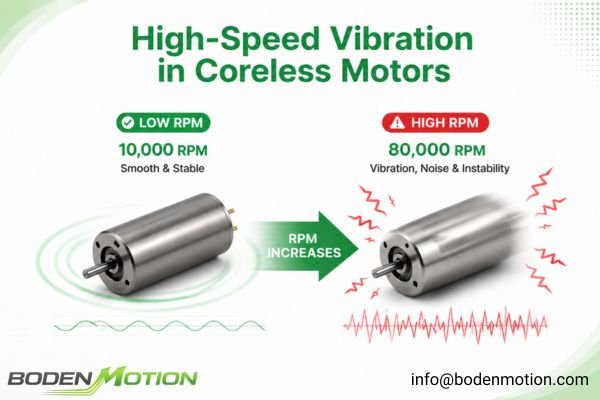

High-speed vibration is a frustrating problem. Your coreless motor system works perfectly at low RPM, but as you increase the speed, it starts to shake, generate noise, and lose stability.
This high-speed vibration in coreless motors is rarely due to a single fault. It is typically a system-level issue where the motor's low inertia makes it highly sensitive to small mechanical imperfections like rotor imbalance, bearing tolerances, and structural resonance, which are amplified by centrifugal forces at high RPM.
In many OEM integration projects, engineering teams select a coreless motor for its fast response and smooth low-speed control, only to discover that the entire device becomes unstable near the maximum operating speed. The truth is, high-speed stability isn't just about motor specifications; it's about the precise integration of the motor, the load, and the mechanical structure. Let's break down the common causes.
Why Coreless Motors Are More Sensitive to High-Speed Vibration
The defining feature of a coreless DC motor is its lightweight rotor, which has no iron core. This design significantly reduces rotor inertia, leading to performance advantages like extremely fast dynamic response and reduced cogging torque for smoother motion. However, this same characteristic is the reason it's more sensitive at high speeds.
Low rotor inertia means the motor has less mass to resist external disturbances and less inherent passive damping, making the entire system more susceptible to vibration.

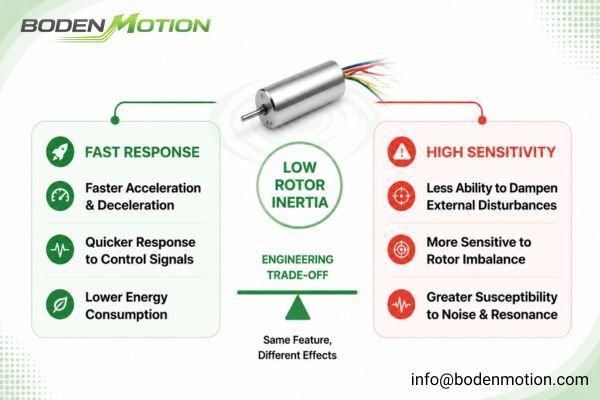

This is a classic engineering trade-off:
-
The Advantage of Low Inertia:
- Faster acceleration and deceleration with less current1
- Quicker response to control signals
- Lower energy consumption during speed changes
-
The Challenge of Low Inertia:
- Less ability to passively dampen mechanical vibration
- Increased sensitivity to any rotor imbalance
- Greater susceptibility to bearing noise and structural resonance
Coreless motors are not unstable by design. Rather, their superior responsiveness demands higher precision from the entire mechanical system to maintain stability during high-speed operation.
How Rotor Imbalance Becomes a Major Vibration Source at High RPM

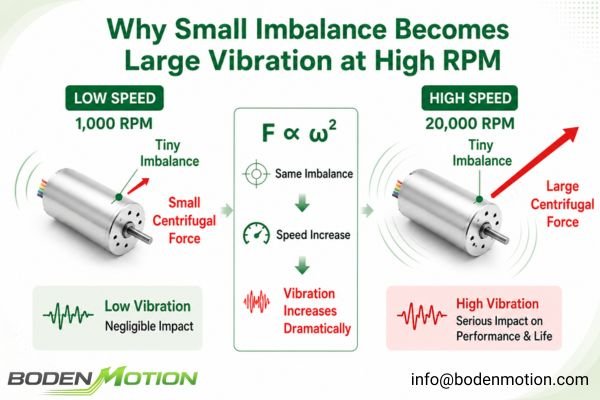

Rotor imbalance is one of the most frequent culprits behind coreless motor vibration. The physics are straightforward: any mass not perfectly centered on the axis of rotation will create a centrifugal force as it spins.
This force grows with the square of the rotational speed (ω²). A tiny imbalance that is completely unnoticeable at 1,000 RPM can become a powerful shaking force at 20,000 RPM.
A common pattern during prototype testing is vibration that gets progressively worse as motor speed increases. This is a classic symptom of imbalance originating from manufacturing factors like:
- Minute variations in the rotor winding distribution
- Inconsistent thickness of adhesives used in assembly
- Slight eccentricity of the shaft relative to the rotor
- Manufacturing tolerances in rotor components
For this reason, dynamic balancing is essential for high-speed applications. ISO 21940 balance quality grades define allowable residual unbalance levels for rotating components. The required grade depends on the rotational speed, rotor mass, and the precision needs of the application.
| Balance Grade | Typical Application |
|---|---|
| G6.3 | General rotating machinery |
| G2.5 | Precision rotating equipment |
| G1.0 | High-speed precision systems |
| G0.4 | Ultra-precision applications |
Common OEM Mistake: Assuming that any "balanced" motor will work. A motor balanced to a G6.3 grade might be fine for a cooling fan, but it would likely cause unacceptable vibration in a 50,000 RPM dental handpiece, which may require a grade of G1.0 or better. The balance specification must match the speed and precision requirements of your device.
How Bearings and Mechanical Tolerances Affect High-Speed Stability
If the rotor is well-balanced but the system still shakes, the next place to look is the bearings and overall mechanical tolerances. At high speeds, bearings are no longer just simple supports; they become a critical component of the dynamic system.
Imperfections in bearings or shaft alignment that are negligible at low speeds can introduce significant radial runout, friction variation, and noise at high RPM, directly destabilizing the rotor.
Engineers often find high-speed stability issues related to:

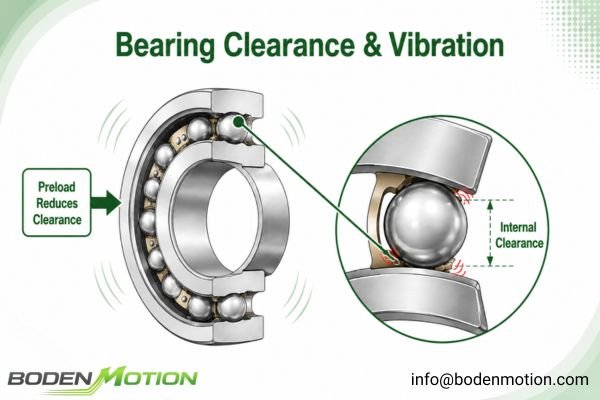

- Bearing Internal Clearance: The small gap between the balls and races can allow the rotor to "rattle" at high speeds.
- Bearing Preload: High-speed bearings are often preloaded (put under a light axial force) to remove this clearance. Too little preload causes chatter; too much causes excessive heat and premature failure.2
- Lubrication: The wrong type or amount of grease can increase friction and vibration. High-speed operation often demands specialized grease or oil.
- Shaft Runout and Alignment: An improperly seated bearing or a misaligned shaft forces the rotor to wobble, creating vibration.
High-speed stability depends on the complete bearing system design, including preload, lubrication, clearance, and operating conditions, not just the bearing's ABEC grade alone.3
Why Motor Installation Structure Can Amplify Small Vibrations
Sometimes, the motor itself is perfectly stable on a test bench, but it makes the entire device shake violently once installed. This is almost always a case of structural resonance.

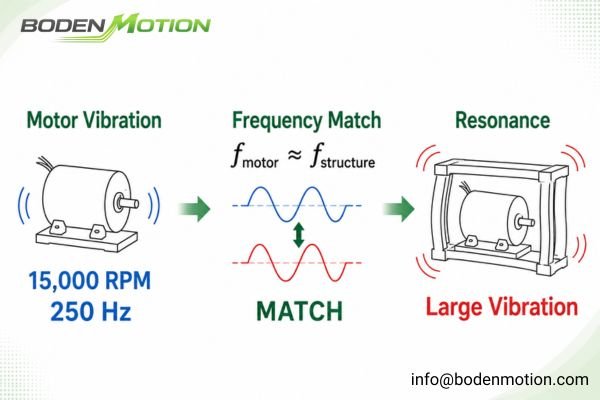

Every mechanical structure has a natural frequency at which it prefers to vibrate. If the motor's operating RPM matches this frequency, even a tiny vibration from the motor can be amplified dramatically, just like pushing a child on a swing at the right moment.
This is a common integration surprise, especially in devices with lightweight plastic housings or long, thin mounting brackets. A common OEM integration scenario illustrates this: a motor operating at 15,000 RPM creates a primary excitation frequency of 250 Hz (15,000 / 60). If a plastic housing or bracket has a natural frequency near 250 Hz, it will resonate loudly.4
Testing a motor on a heavy, rigid lab bench will not reveal these issues. The vibration only appears when the motor is installed in the final product assembly. Fixing resonance requires changing the system's stiffness or mass—perhaps by making a bracket thicker, adding support ribs, or using damping materials.
How Load Matching and Motor Control Influence High-Speed Vibration

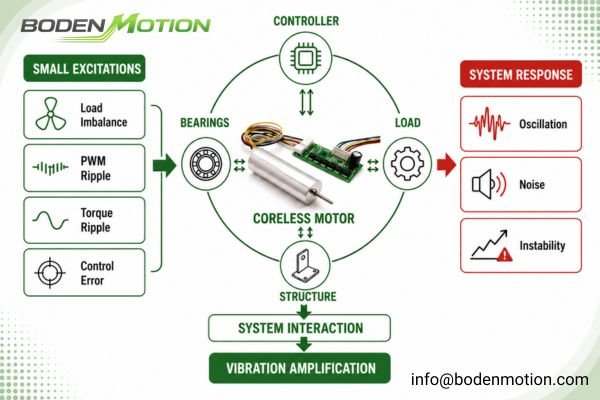

A motor never runs in isolation. The connected load and the electronic driver are integral parts of the motion system, and both can be sources of high-speed vibration. Stability depends on the complete system: Motor + Controller + Load + Structure.
A mismatch between components can create a "tail wagging the dog" scenario, challenging the control system and leading to instability.
Mechanical Factors:
- Inertia Mismatch: A high load inertia connected to a low-inertia motor can cause overshoot and oscillation. As an engineering guideline, keeping the load-to-motor inertia ratio below 10:1 is often recommended for responsive servo systems5.
- Coupling Stiffness: A flexible coupling can introduce its own spring-like behavior and torsional vibrations, while a rigid coupling demands very precise alignment.
- Load Balance: An unbalanced load (like a fan blade or grinding bit) will create powerful vibrations that the motor cannot overcome.
Electrical and Control Factors:
- Torque Ripple: Even in brushless motors, ripple from commutation and winding harmonics can create excitation forces.
- PWM Current Ripple6: The driver's PWM scheme can introduce current ripple, leading to torque pulsations and audible noise.
- Control Loop Tuning: Poorly tuned PID gains can cause the motor to oscillate around its setpoint, appearing as speed fluctuation or vibration.
How OEM Engineers Should Evaluate High-Speed Coreless Motor Applications
To avoid high-speed vibration problems, the selection process must start with a complete system specification, not just a motor part number. Providing this information allows motor suppliers to evaluate whether a proposed motor can remain stable in the complete system.
In high-speed applications, the motor's rated speed alone is rarely enough to predict final performance. Factors such as load characteristics, mounting conditions, operating cycle, and control method can significantly affect vibration, noise, and long-term reliability. A complete application review helps identify potential integration risks before they appear during prototype testing or mass production.

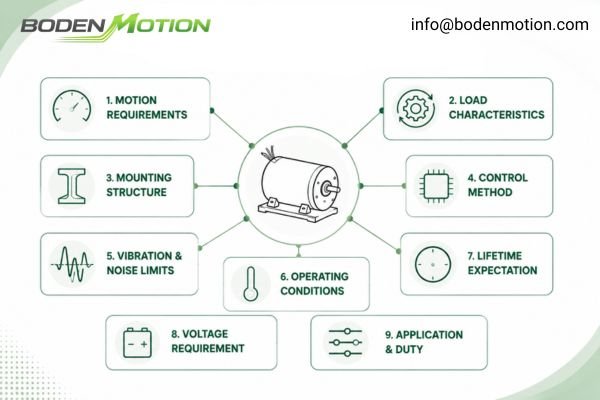

Before selecting a high-speed coreless motor, be prepared to define these critical parameters:
- Operating RPM: Maximum and continuous speed ranges.
- Torque Requirement: Continuous and peak torque at target speeds.
- Acceleration Profile: How quickly does the motor need to start and stop?
- Load Inertia7: The inertia of all components driven by the motor.
- Vibration & Noise Limits8: A quantifiable target (e.g., vibration in mm/s or g's, noise in dBA at a specific distance).
- Mounting Structure: Drawings or details of the motor mount, housing material, and stiffness.
- Operating Conditions: Ambient temperature and duty cycle.
- Lifetime Expectation: Required operating hours or cycles.
- Voltage Requirement: Available supply voltage and current limits.
- Control Method: The type of driver and feedback system (e.g., encoder, Hall sensors) being used.

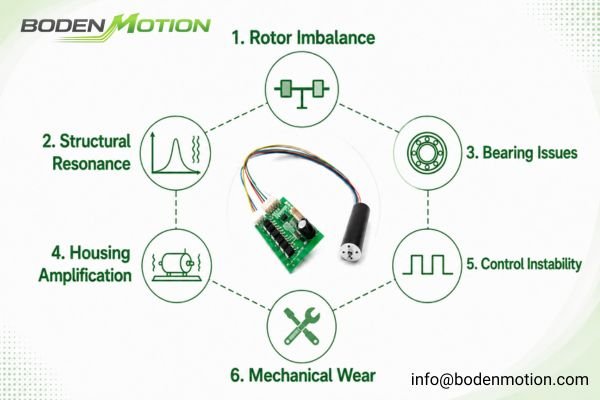

High-Speed Coreless Motor Vibration Troubleshooting Guide
High-speed vibration troubleshooting requires separating motor-related problems from system-level problems. This systematic approach helps isolate the root cause by linking common symptoms to their likely origins.
A practical troubleshooting process usually starts by checking the simplest possible causes and gradually moving toward more complex system interactions. Engineers often compare the motor performance under different conditions, such as unloaded operation, final assembly testing, and different speed ranges, to determine whether the vibration originates from the motor itself or from the integrated system.
| Symptom | Possible Cause | Recommended Check |
|---|---|---|
| Vibration increases steadily with RPM | Rotor Imbalance9 | Run the motor uncoupled. If vibration persists and scales with speed, imbalance is likely. Verify the motor's balance grade. |
| Loud noise/vibration at a specific RPM | Structural Resonance10 | Slowly sweep the motor's speed. A sharp peak in vibration indicates resonance. Try temporarily stiffening the mount to see if the peak shifts. |
| High bearing temperature or audible whine | Bearing Issues | Check for incorrect preload, lubrication failure, or contamination. Verify the bearing grade and preload match the speed requirement. |
| Motor is stable alone, but noisy in device | Housing Resonance / Amplification | The motor is exciting a natural frequency of your device. Test the motor in the final assembly and consider FEA or structural modifications. |
| Speed fluctuation or oscillation | Control Instability / Torque Ripple | Review the inertia ratio and controller tuning (PID gains). Check for torque ripple or PWM-related noise from the driver. |
| Vibration appears after extended use | Mechanical Wear / Fatigue | Likely bearing wear or loosening of mechanical fasteners. This points to a component lifetime or fatigue issue. |
Conclusion
Coreless motors can deliver exceptional high-speed performance, but their low-inertia design requires a higher level of mechanical precision and system integration. High-speed stability is not achieved by selecting a motor with a high RPM rating alone; it is engineered through the interaction of rotor balance, bearing performance, mechanical structure, load characteristics, and control strategy.
For OEM engineers, the key to solving high-speed vibration is evaluating the complete motion system rather than focusing only on the motor datasheet. Our engineering team can review your application requirements and help identify potential integration risks to achieve reliable, quiet, and stable high-speed operation. Contact us at info@bodenmotion.com.
FAQ
Q1: Why do coreless motors vibrate more at high speed?
Coreless motors have very low rotor inertia, which improves response but also makes them more sensitive to imbalance, bearing variations, and external disturbances. These small imperfections generate forces that are amplified at high RPM, causing visible vibration.
Q2: Is rotor imbalance the main cause of high-speed vibration?
Rotor imbalance is one of the most common causes, as the resulting centrifugal force increases with the square of the speed. However, bearing condition, structural resonance, and load mismatch are also frequent contributors.
Q3: Can a balanced coreless motor still have vibration problems?
Yes. A well-balanced motor can still cause severe vibration if its operating frequency excites the natural resonant frequency of the device's mounting structure or housing. The problem is often the system, not just the motor.
Q4: Why are bearings important for high-speed coreless motors?
At high RPM, bearing precision, internal clearance, and lubrication condition directly dictate rotor alignment, rotational smoothness, noise, and long-term reliability. A low-quality bearing will undermine the performance of a high-precision motor.
Q5: What should OEM buyers provide when selecting a high-speed coreless motor?
OEM buyers should provide the full operating context: target RPM range, load inertia, details of the mounting structure, quantitative vibration/noise limits, duty cycle, ambient temperature, and the required system lifetime.
