Does Higher RPM Increase Brushless DC Motor Cost?

Many OEM teams assume that increasing a brushless DC motor 's speed is a simple change, often leading to unexpected costs and integration problems. The reality is more complex.

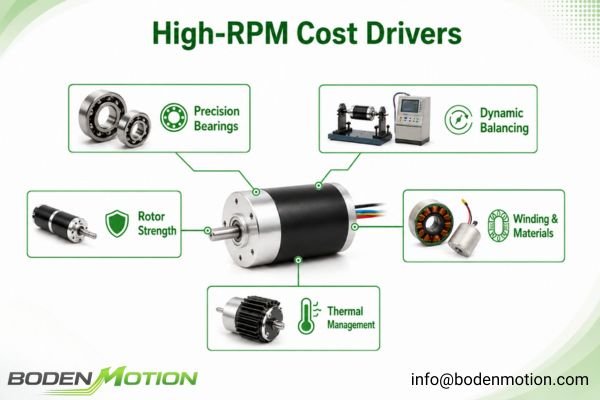

Higher RPM can increase motor cost, but not because of the speed value itself. The cost rises when the required speed creates stricter requirements for bearings, rotor dynamics, thermal management, and manufacturing consistency. Understanding these engineering trade-offs is key to selecting a motor that is both reliable and cost-effective.

For an OEM engineer, the essential question is not just “How much does a higher RPM motor cost?” but “What additional engineering requirements are created by higher speed?” The mechanical challenges are influenced not only by RPM but also by rotor diameter, as two motors at the same speed can have very different surface velocities and centrifugal loads¹. This article explores the engineering drivers that link high speed to higher cost and provides guidance for making informed selection decisions.

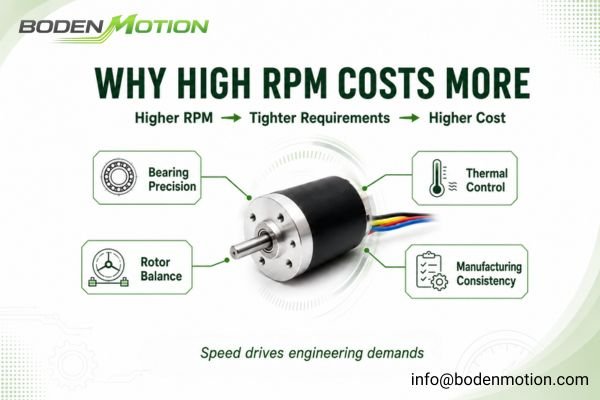

Why RPM Is an Important Cost Factor in BLDC Motor Design

A common assumption is that increasing speed only requires a different winding. From our experience supporting OEM motor projects, this is a frequent oversimplification. Designing for high speed means engineering a motor that can survive the demanding operating conditions it creates.

It's critical to distinguish between different speed ratings, as they have different implications for design and cost.

RPM alone does not determine motor cost. A small, low-torque motor running at 30,000 RPM may be easier to manufacture than a larger rotor operating at a lower speed under much higher centrifugal, bearing, and thermal loads. The cost increase comes from the engineering investment needed to maintain stable performance as the operating conditions become more demanding². This includes factors like rotor balancing, bearing systems, material selection, and the validation required to guarantee reliability.

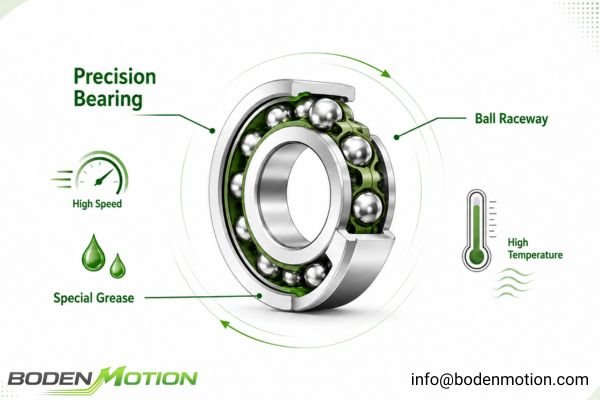

How High RPM Increases Bearing Requirements

Bearings are often the first components to show signs of stress in high-speed applications. As RPM increases, bearing performance becomes a critical factor in the motor's overall reliability and lifetime.

Higher rotational speed increases friction and mechanical stress on the bearing components, which generates more heat and accelerates lubricant degradation. A standard bearing that is adequate at a moderate speed can quickly become a source of noise, vibration, or reduced service life when pushed into a demanding high-RPM operating range.

One issue we frequently see during OEM validation is premature lifetime failure linked to the bearing system. This often happens when a motor is selected based on a datasheet's peak speed, but the application requires sustained high-speed operation. High-speed motors may require bearings with tighter runout control, suitable internal geometry, optimized lubrication, and application-specific fits. While a higher ABEC grade may be beneficial in some precision applications, the true speed capability must be evaluated together with load, bearing size, lubrication, preload, and operating temperature.

This can involve:

• Bearing Selection: Using high-purity steel or, in some special cases, hybrid ceramic bearings for extreme speed or low-friction requirements.
• Lubrication: Specifying grease or oil designed for high speeds and temperatures.
• Fit & Preload: Defining application-specific internal clearance or preload to manage thermal expansion, vibration, and stiffness.
• Assembly: Employing more precise assembly processes to ensure proper alignment and prevent damage.

These choices are not just component upgrades; they are part of a system-level approach to ensuring mechanical reliability.

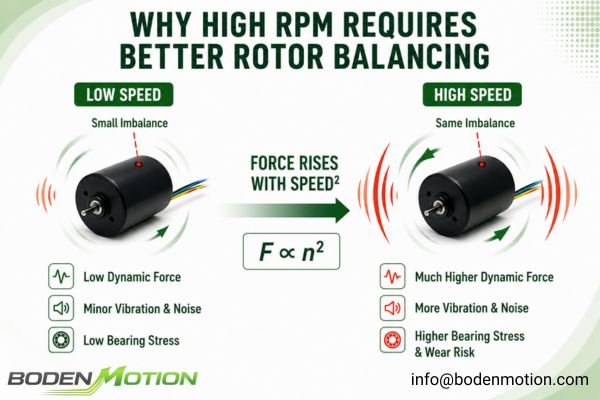

Why High RPM Requires Better Rotor Balancing

At low speeds, a small imbalance in a rotor's mass distribution may go unnoticed. However, because the dynamic force produced by a given rotor imbalance increases with the square of rotational speed, that same small imbalance can generate significantly larger dynamic forces at high speeds.

This can lead to excessive vibration and audible noise, which directly impacts reliability by transmitting stress into the bearings, causing accelerated wear, and potentially degrading the performance of the entire OEM device. This is why high-speed BLDC motors require a much tighter rotor balancing specification, a process that adds manufacturing time and cost.

At very high speeds, balancing alone is not sufficient. The entire rotor structure must also withstand significant centrifugal loading. This includes the retention of magnets, sleeves, adhesives, and shafts. Engineers may also need to check the shaft's critical speed and the rotor-bearing system's resonance³ to ensure that the operating range does not overlap with an unstable vibration mode. These structural integrity and dynamic analysis considerations are a critical part of high-speed motor design and contribute to the overall engineering cost.

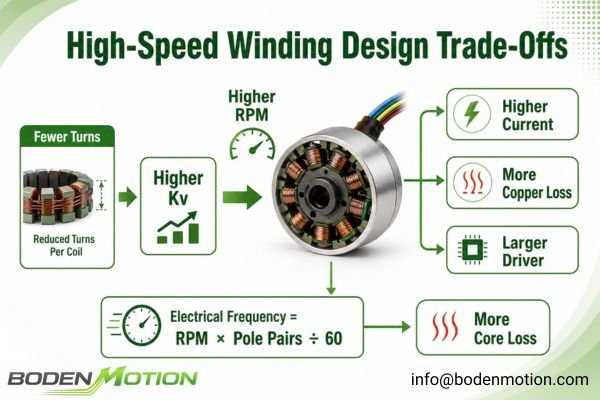

How High-Speed Winding Design Affects Cost

Achieving higher speed often involves adjusting the motor's winding to get a higher speed constant (Kv). Achieving a higher Kv commonly involves reducing the winding turn count. This can reduce back-EMF and winding resistance, allowing the motor to reach a higher speed at a given voltage. However, producing the same torque may require more current, which can increase copper loss and place greater demands on the driver and power supply.

A higher Kv does not automatically mean a motor is suitable for sustained high-speed operation. The motor's electrical frequency, determined by its speed and pole count, also increases.

Electrical Frequency (Hz) = Mechanical RPM × Pole Pairs ÷ 60

A higher electrical frequency can increase core losses (iron losses) in the stator, generating additional heat.⁴ It also places greater demands on the driver, which must execute commutation and control loops more rapidly. This is separate from the PWM switching frequency, which is a driver parameter that affects current ripple and switching losses.

A motor designed only for peak speed may operate very inefficiently at its target operating point, generating excessive heat or requiring a larger, more expensive driver. High-speed operation also demands better quality control during the winding process. Any inconsistency can lead to electrical imbalances between phases, causing additional vibration and thermal load. Therefore, achieving reliable high-RPM performance requires a holistic electrical design that balances winding parameters, material selection, and driver compatibility, which is inherently more complex than a standard design.

Why Thermal Management Becomes More Important at High RPM

Heat is a primary limiting factor for motor reliability, and high-speed operation generates more of it from multiple sources. These include higher electrical losses (copper and iron losses) and increased mechanical losses from bearing friction and windage (air resistance).

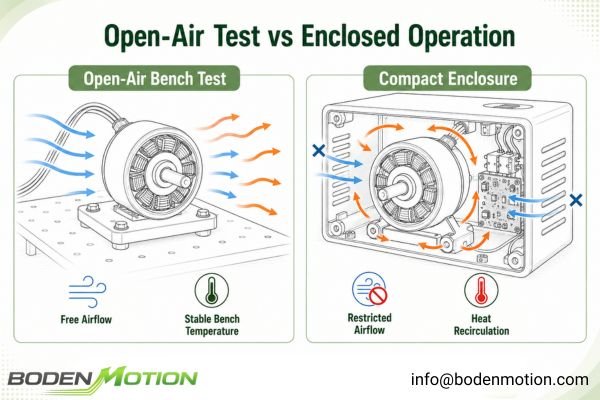

In compact BLDC motors, dissipating this extra heat is especially difficult because the available surface area for cooling is small. From our experience, a motor that appears thermally stable during an open-air bench test can behave very differently after being installed inside a compact enclosure. Restricted airflow and heat recirculation may push the motor beyond its intended continuous operating range.

The resulting temperature rise affects every component, from the winding insulation and magnet strength to the bearing lubricant's viscosity and lifespan⁵. To manage these challenges, high-speed motor designs often incorporate higher-temperature-grade materials, optimized windings to improve efficiency, and internal design features that improve thermal pathways. These thermal management strategies are essential for ensuring the motor can sustain high-speed operation over its expected lifetime, and they represent a significant part of the engineering cost.

What OEM Buyers Should Confirm When Selecting a High RPM BLDC Motor

To ensure a successful integration, experienced OEM teams look beyond the maximum RPM on a datasheet and focus on the motor's capabilities under real-world operating conditions.

A common pattern we have observed is that projects run into trouble when the initial motor selection is based on incomplete or optimistic requirements. Providing a comprehensive set of parameters allows the motor supplier to propose a solution that balances performance, reliability, and cost, avoiding both under-performance and over-engineering.

Before engaging a supplier, prepare a clear definition of your application's needs. This will lead to a more productive technical discussion and a more accurate motor recommendation.

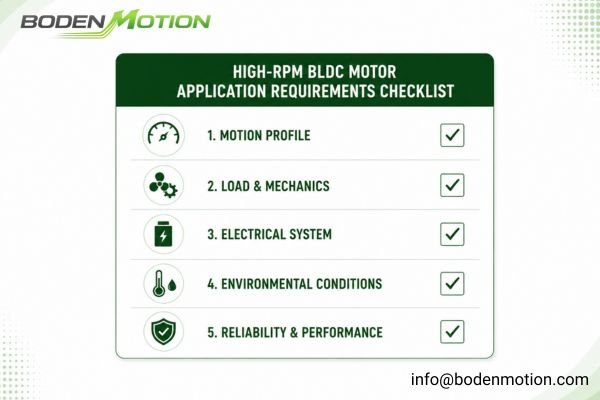

Key Application Parameters for High-RPM Motors⁶:

• Motion Profile: Target continuous RPM, peak RPM and its duration, required torque at speed, and duty cycle.
• Load & Mechanics: Load type (e.g., fan, pump), load inertia, and transmission details.
• Electrical System: Supply voltage range, continuous and peak current limits, and existing driver/controller model (if any).
• Environmental Conditions: Ambient temperature range, altitude, dust/humidity conditions, and cooling method (e.g., airflow, heat sink).
• Reliability & Performance: Expected lifetime, maximum motor surface temperature, noise and vibration limits, and any known resonance frequencies to avoid.

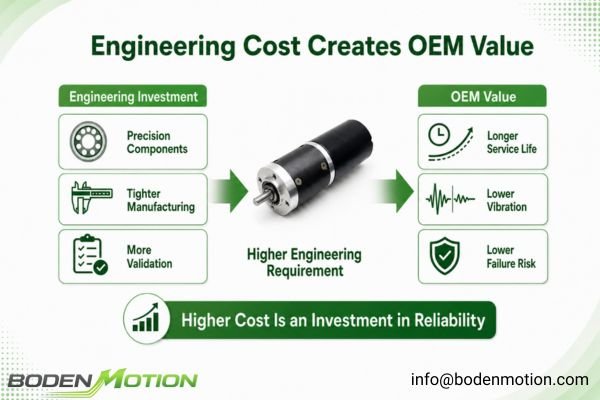

High-RPM BLDC Motor Cost Drivers and OEM Value

The key takeaway for procurement managers and engineers is that the cost associated with high RPM is not arbitrary. It is a direct reflection of the increased engineering and manufacturing precision required to ensure reliability.

In many OEM projects, the most economical route is to start with a validated motor platform and customize only the winding, shaft, connector, or mounting interface that the application genuinely requires. A higher-priced high-speed motor often signifies a more robust engineering process and more comprehensive validation. The additional cost is an investment in risk reduction. This is especially true if the design moves from a standard platform to a fully customized solution, which may involve NRE costs.

The table below breaks down where these costs originate and what value they provide to the OEM. It reframes the question from "Why is this more expensive?" to "What additional reliability am I getting for this investment?"

Attempting to achieve high RPM, low noise, long life, and a very compact size simultaneously can drive costs up significantly, as these requirements often conflict.

Conclusion

While higher RPM can increase the cost of a brushless DC motor, the speed value itself is not the direct cause. Cost increases when the required speed pushes the design beyond standard limits, creating stricter requirements for the bearings, rotor dynamics, thermal management, and validation processes.

The most cost-effective solution is not the motor with the highest possible speed. It is the motor that can operate reliably and efficiently at the target speed, under the specified load, thermal, and lifetime conditions of your application. Focusing on the continuous operating point is the key to achieving the right balance between performance, reliability, and total system cost.

For an initial high-speed motor assessment, provide the target continuous RPM, peak RPM and duration, torque at speed, load type, duty cycle, available voltage and current, cooling conditions, noise or vibration limits, and expected lifetime. BODENMOTION can use these parameters to evaluate whether a standard motor platform is suitable or whether additional customization is required. Contact our engineering team at info@bodenmotion.com to start the discussion.

FAQ

Q1: Does a higher RPM BLDC motor always cost more?

Not necessarily. Cost is driven by the engineering requirements. If a high RPM can be achieved using standard components and processes, the cost increase may be minimal. However, if it requires upgraded bearings, tighter balancing, special materials, or extensive validation, the cost will be higher.

Q2: Why does high RPM require better rotor balancing?

The dynamic force produced by a given rotor imbalance increases with the square of rotational speed. At high RPM, even a very small mass imbalance can generate substantial dynamic force. This increases vibration, bearing load, audible noise, and mechanical fatigue, which is why tighter rotor balancing becomes necessary.

Q3: Do high-speed BLDC motors generate more heat?

They often do. Higher speeds can increase mechanical losses (from bearings and windage) and electrical losses (iron losses due to higher electrical frequencies). This makes effective thermal management a critical part of a reliable high-speed motor design.

Q4: Can an existing BLDC motor be modified for a higher RPM?

Sometimes, but it requires a full engineering re-evaluation. Simply changing the winding for a higher Kv is not enough. The bearings, rotor balance, magnet retention, thermal capacity, and driver compatibility must all be confirmed to have sufficient margin for the new, higher speed.

Q5: How can OEM buyers reduce the cost of a high-RPM BLDC motor?

Define the required continuous operating speed, not just a peak value. Provide clear details on torque, load, and duty cycle. Whenever possible, start with a supplier's standard motor platform, as customization increases cost. A clear and realistic specification is the most effective tool for cost control.
